WRH-300A Middle Temperature Commercial Fruit And Vegetable Dryer

WRH-300A middle temperature commercial fruit and vegetable dryer is suitable for drying a very large variety of food. Such as fruits drying, vegetables drying, herbs drying, small fish drying, flower drying, noodle drying, and so on. Contact us for free drying testing!

The  WRH-300A commercial fruit and vegetable dryer is an embedded dehydrator that is the main machine of the drying system. After constructing an insulated drying room, push the  WRH-300A middle temperature commercial fruit and vegetable dryer into the drying room and simply connect the power cord to work normally. You can use your own drying room or buy our IKE drying room with the  WRH-300A middle temperature commercial fruit and vegetable dryer.

WRH-300A - Front view

There is hot and dry air outlet on the back of WRH-300A.

WRH-300A - back view

There are power line, electrical controller box and exhaust air outlet on the back of WRH-300A.

Based on the drying characteristics of the material to be dried, you can build your own drying room. After completion of the drying room, one simply pushes the WRH-300A middle temperature commercial fruit and vegetable dryer into the room and connects it to the power supply. This is very flexible and convenient. Even if the amount of moisture in the material may not be very high, the inner space of the drying room cannot be too large (Suggest to use the following dimensions). An overly sized drying room will affect the efficiency of the WRH-300A middle temperature commercial fruit and vegetable dryer.

View Video →  WRH-300A middle temperature commercial fruit and vegetable dryer

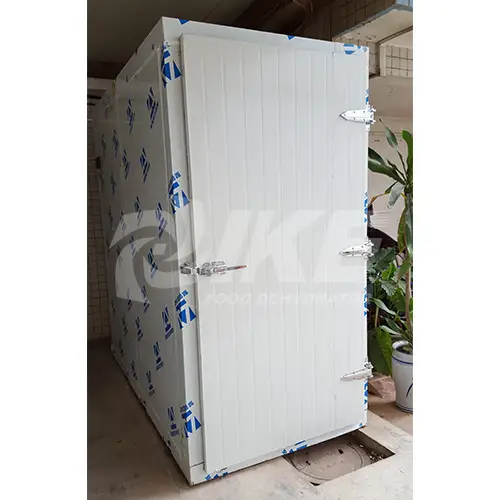

WRH-300A commercial dryer drying room

After installing the WRH-300A commercial fruit and vegetable dryer, you can put your food in the drying room for drying.

WRH-300A commercial dryer drying room back view

WRH-300A commercial dryer drying room hasn't any external accessories and the food is dried in a completely sealed space.

Top View

Construction Guild for WRH-300A middle temperature commercial fruit and vegetable dryer drying house

1. Material: 100mm Polyurethane heat-preserved board

2. Size of  WRH-300A middle temperature commercial fruit and vegetable dryer drying room: (L*W*H) 3000mm×1450mm×2000mm

3. Door Size (W*H): 1100*1900mm

4. There are 3 pcs sandwich foam board used for windshield. size: 1250*950*50mm

5. Can use Fan Model No :GKF/L 4S-2-0.55KW-4 as return airflow . wind speed : 2900rph, as shown on the picture.

6. Installing a foam panel at the fan requires a modular stainless steel support.

7. We recommend to open the hole for drying room after installing the WRH-300A middle temperature commercial fruit and vegetable dryer.

Construction Guild For Racks

1. Material: Stainless Steel 201

2. Size of the rack (L*W*H):1200*850*1750mm

3. There is 25 layer, distance in between the layer is 60mm, can put 50pcs trays per rack

Detail for Trays

1. Material: stainless Steel 304

2. Aperture: 5*5mm

3. Size: 780*540*30mm

Rice noodle dehydrating by IKE  WRH-300A commercial fruit and vegetable dryer.

View Video →  Rice Noodle Drying

Mushroom drying by WRH-300A commercial vegetable dryer

Tea seed drying by WRH-300A commercial dryer
