WRH-300G High Temperature Commercial Food Dehydrating Equipment For Beef Jerky And Fruit

WRH-300G commercial food dehydrating equipment for beef jerky and fruit is suitable for drying a very large variety of food. Such as fruit drying, egg drying, meat drying, fish drying, rice drying, and so on. Contact us for free drying testing!

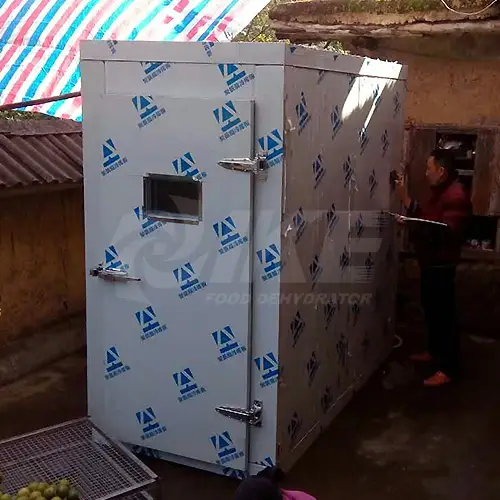

The WRH-300G commercial food dehydrating equipment is an embedded dehydrator that is the main machine of the drying system. After constructing an insulated drying room, push the WRH-300G food dehydrating equipment machine into the drying room and simply connect the power cord to work normally. You can use your own drying room or buy our IKE drying room with the WRH-300G food dehydrating equipment machine.

WRH-300G - Front view

There is hot and dry air outlet on the back of WRH-300G. It looks the same as WRH-300A

WRH-300G - back view

There are power line, electrical controller box and exhaust air outlet on the back of WRH-300G. It looks the same as WRH-300A

Based on the drying characteristics of the material to be dried, you can build your own drying room. After completion of the drying room, one simply pushes the food dehydrating equipment machine into the room and connects it to the power supply. This is very flexible and convenient. Even if the amount of moisture in the material may not be very high, the inner space of the drying room cannot be too large (Suggest to use the following dimensions). An overly sized drying room will affect the efficiency of the commercial food dehydrating equipment.

View Video → WRH-300G commercial food dehydrating room

WRH-300G commercial beef jerky dehydrating equipment

Shown here is the meat dehydrating.

WRH-300G commercial fruit dehydrating equipment drying with stainless steel shelves

Shown here is the momordica grosvenori dehydrating

Side View

Construction Guild for WRH-300G commercial food dehydrating equipment for beef jerky and fruit drying house

1. Material: 100mm Polyurethane heat-preserved board

2. Size of WRH-300G commercial food dehydrating equipment drying room:  (L*W*H) 3000mm×1450mm×2000mm

3. Door Size (W*H): 1100*1900mm

4. There are 3 pcs sandwich foam board used for windshield. size: 1250*950*50mm

5. Can use Fan Model No :GKF/L 4S-2-0.55KW-4 as return airflow . wind speed : 2900rph, as shown on the picture.

6. Installing a foam panel at the fan requires a modular stainless steel support.

7. We recommend to open the hole for drying room after installing the WRH-300G commercial food dehydrating equipment.

Construction Guild For Racks

1. Material: Stainless Steel 201

2. Size of the rack (L*W*H):1200*850*1750mm

3. There is 25 layer, distance in between the layer is 60mm, can put 50pcs trays per rack

Detail for Trays

1. Material: stainless Steel 304

2. Aperture: 5*5mm

3. Size: 780*540*30mm

Tea dehydrating by IKE WRH-300G commercial food dehydrating equipment.

View Video →  Tea Drying
