WRH-500G Industrial And Commercial High Temperature Food Drying Machine

WRH-500G industrial and commercial high temperature food drying machine is suitable for drying a very large variety of food. Such as mushroom drying, bacon drying, sausage drying, beef jerky drying, fruit and vegetable drying, big fish drying, tea drying, and so on. Contact us for free drying testing!

The WRH-500G industrial and commercial high temperature food drying machine is an embedded dryer that is the main machine of the drying system. After constructing an insulated drying room, push the WRH-500G food drying machine into the drying room and simply connect the power cord to work normally. You can use your own drying house or buy our IKE drying house with the WRH-500G food drying machine.

WRH-500G - Front view

There are hot and dry air outlets on the back of WRH-500G. It looks the same as WRH-500A

WRH-500G - back view

There are power line, electrical controller box and exhaust air outlet on the back of WRH-500G. It looks the same as WRH-500A

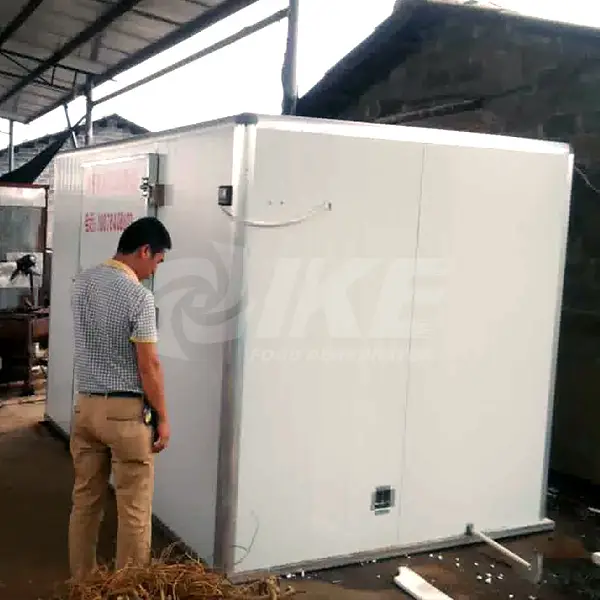

Based on the drying characteristics of the material to be dried, you can build your own drying house. After completion of the drying house, one simply pushes the WRH-500G industrial and commercial high temperature food drying machine into the house and connects it to the power supply. This is very flexible and convenient. Even if the amount of moisture in the material may not be very high, the inner space of the drying house cannot be too large (Suggest to use the following dimensions). An overly sized drying house will affect the efficiency of the WRH-500G industrial and commercial high temperature food drying machine.

WRH-500G food drying machine drying house with stainless steel trolley

We sell trolleys and trays for food drying machines. Just contact us to get them.

WRH-500G food drying machine drying house with stainless steel shelves

This is the old version of WRH-500G, new ones all made of mirror finished stainless steel. Shown here is the meat hanging on the shelf for drying

Side View

Construction Guild for WRH-500G food drying machine drying house

1. Material: 100mm polyurethane heat-preserved board

2. Size of WRH-500G food drying machine drying house (L*W*H): 5000mm×2100mm×2400mm

3. Door Size (W*H): 1100*1900mm you must put the main machine WRH-500G into the drying house first and then install the sideboard , or you can choose two doors so that the width of the WRH-500G food drying machine drying house can totally open.

4. There are 4 pcs sandwich foam board used for the windshield. size: 1250*950*50mm

5. Can use 2Fans as return airflow.

6. Installing a foam panel at the fan requires a modular stainless steel support.

7. We recommend opening the hole for drying house after installing the WRH-500G food drying machine.

Construction Guild For Racks

1. Material: Stainless Steel 201

2. Size of the rack (L*W*H): 1200*850*1750mm

3. There is 25 layers, distance in between the layer is 60mm, can put 50pcs trays per rack.

Detail for Trays

1. Material: stainless Steel 304

2. Aperture: 5*5mm

3. Size: 780*540*30mm

Tea dehydrating by IKE WRH-500G industrial food drying machine.

View Video →  Tea Drying

Tofu Skin dehydrating by IKE WRH-500G industrial food drying machine.

View Video → Tofu Skin Drying
