Application Scope
IKE's commercial food dehydrator is widely used and can be applied to all walks of life.IKE provides comprehensive and reasonable solutions based on customer's specific situations and needs.
Company Advantages1. IKE cabinet dryer for food is tested during the production process and guaranteed that the quality meets the food grade requirements. The testing process is carried out by third-party inspection institutions who have strict requirements and standards on food dehydrator industry.
2. This product is eco-friendly and harmless. The materials or parts used in it are guaranteed to meet the environmental protection standards of European and American.
3. The product is bacteria resistant. It will be processed with the antibacterial agents which damage the microbial structure and kill the cells of bacteria in the fibers.
4. The product helps cut labor costs. Its high efficiency and multi-functions enable manufacturers to hire fewer workers.
5. The actual operator who uses this product often encounters a situation in which manufacturing conditions and output rates are greatly improved over the past.
◇◆ Product information

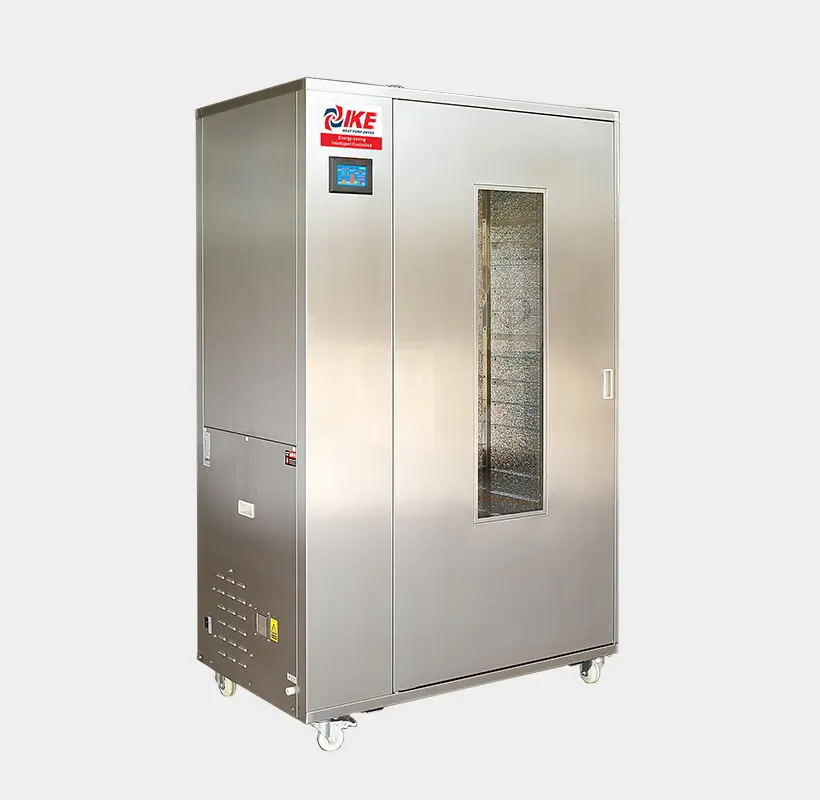

IKE food dehydrator WRH-100B has a compact structure, great energy-saving, wide application, high drying quality, easy operation, simple installation and removable. it is the best drying equipment for small firms, drying experiment and scientific research. optional "cloud" management function to achieve remote monitoring by computers and mobiles.
The users only connect the power to use, is the easiest operation heat pump dryer.
SPECIFICATIONS FOR WRH-100B |
Main performance parameters | Materials | Stainless Steel |
Capacity | 20-100kg/batch |
Power Supply | 220v/50Hz/60Hz |
Power Input | 1.0KW |
Running Current | 5.0A |
Fast heating-up | 1.0KW |
Maximum Power | 2.2Kw |
Dehydration Amount | 3.5Kg/h ( @ 50℃,80%) |
Working Temperature | 50~65℃ |
Working Ambient Temperature | 5~40℃ |
Noise Level | ≤60dB(A) |
Wind Volume | 1100m³/h |
Machine Dimension(L*W*H) | 1180*680*1800mm |
Tray Size(L*W*H) | 780*540*30mm |
Net Weight | 160Kg |
Gross Weight | 180Kg |
Quality Control | IQC (Incoming quality check);IPQC (In-process quality check);OQC (Out-going quality check);FQC (Final quality check) |
Payment terms | 1, We can offer different pricing of FOB, CIF and C&F. 2, For established customers, we will offer more favorable payment terms. |
Shipping | 1, We offer FOB Guangzhou and FOB Shenzhen to our customers. 2, We can also offer CIF to those in need. 3, We can also help in container consolidation. |
◇◆ Working principle
Drying essence is take moisture away, but takes away the moisture temperature is not the most critical factor. The key for drying is depending on relative humidity within certain space, IKE Company took advantage of the dry essence, originality developed a "Closed Cycle" dryer, changed the traditional heat pump dryer "bake" to "dehumidifier”. Its several advantages were unmatched by the traditional heat pump dryer.

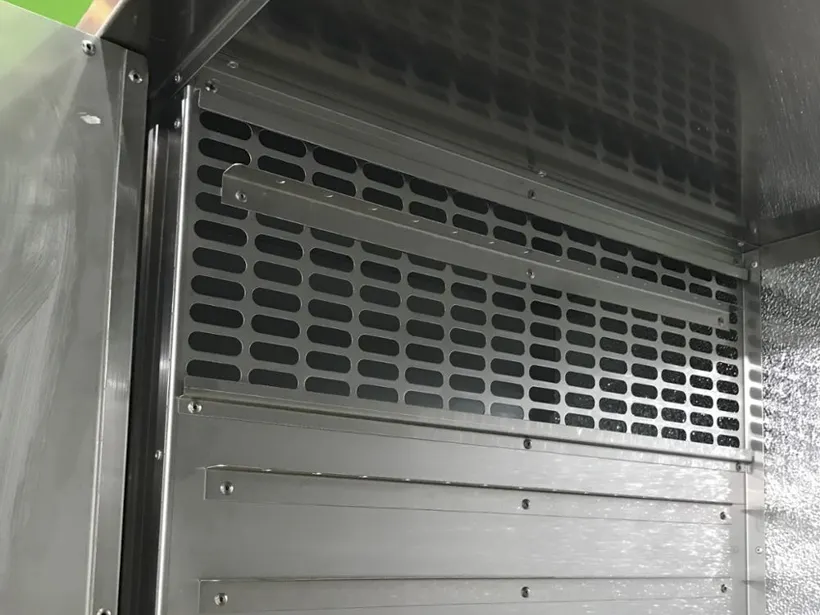

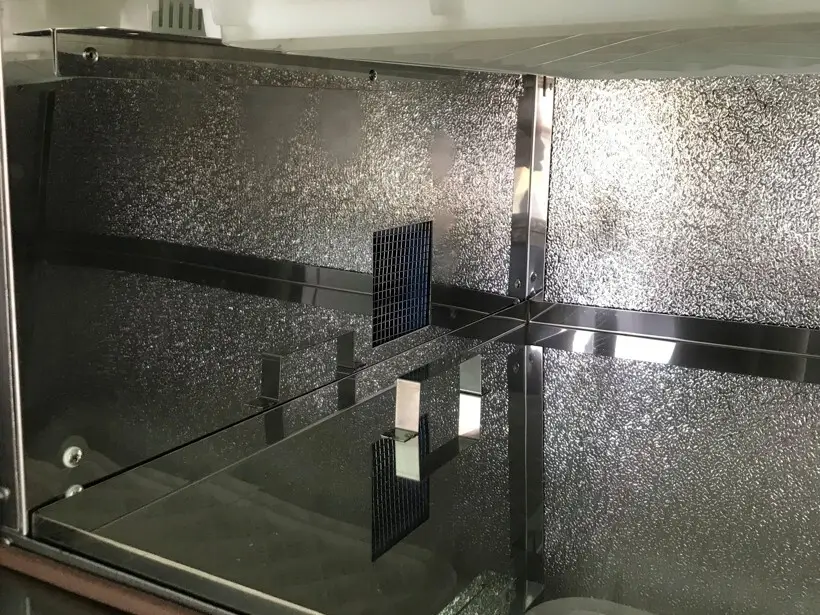

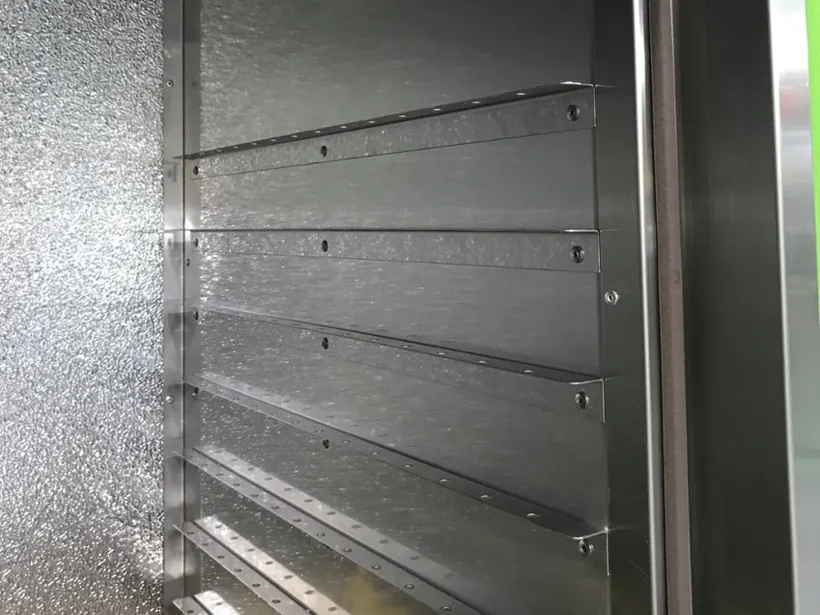

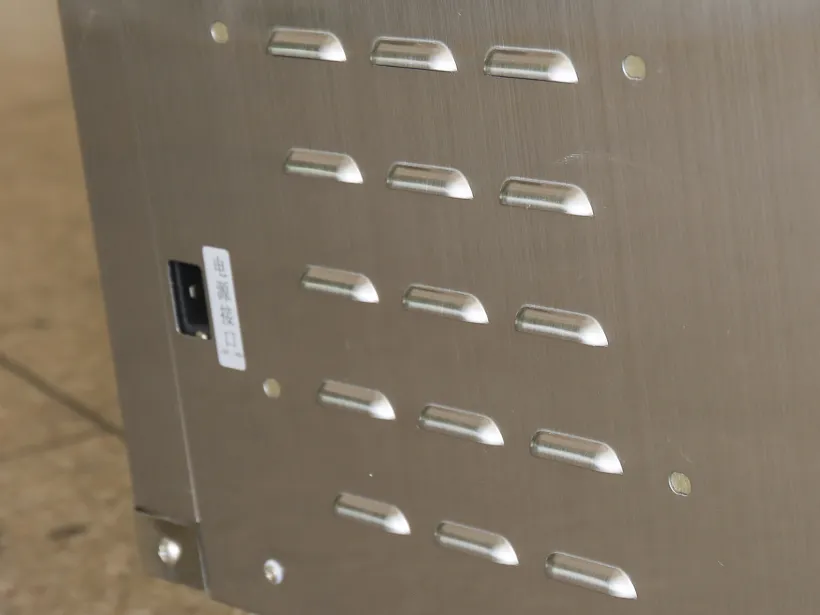

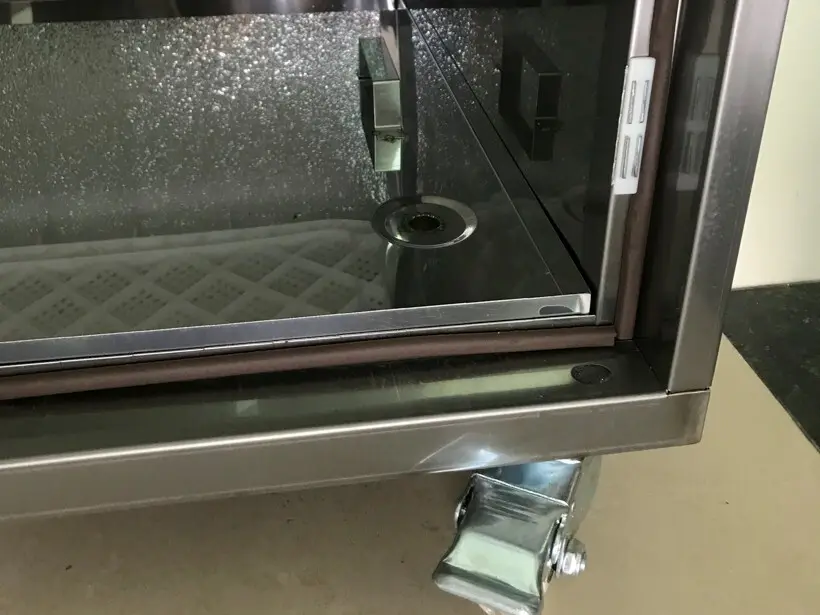

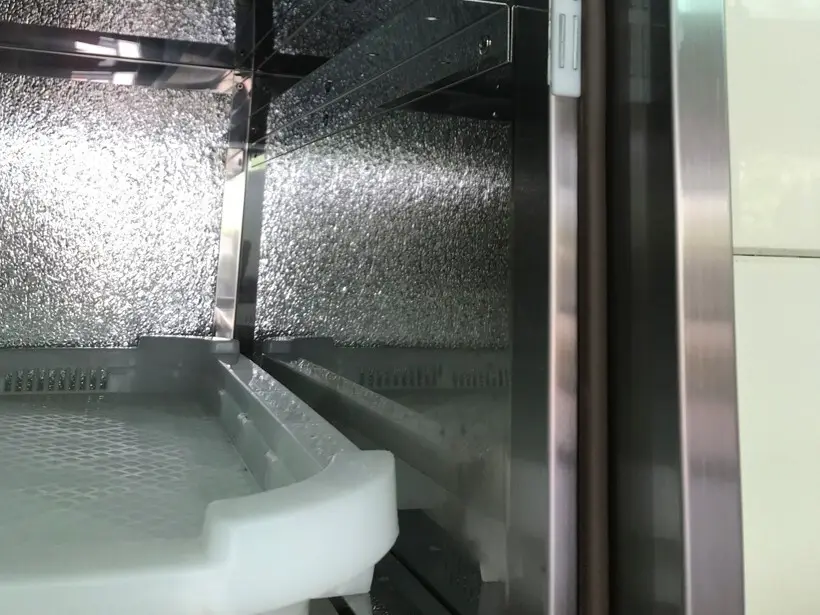

◇◆ Detailed Images

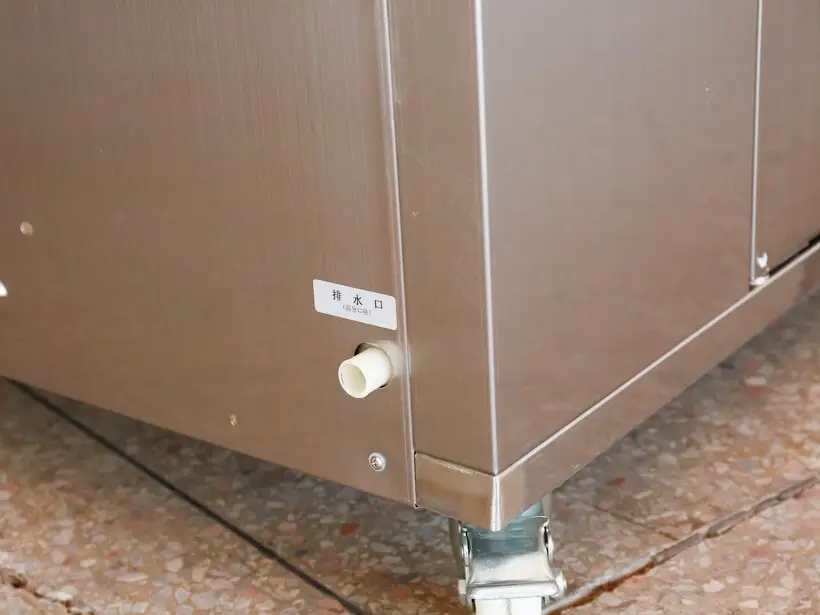

Water collection tray drain
◇◆ Product Application
Applicable locations and situations for WRH-100B: dried fruit production, sausage production, rare chinese herbal medicine, initial processing for produce, etc.
fruits and vegetables drying
meat drying
◇◆ Working Advantages
Middle and low temperature dehumidification drying
Strong wind dehumidification drying in 25℃~65℃, articles does no damage, no moldy and maintain nutrition.
Working in wholly sealed drying room, hygiene and energy conservation
Drying in a closed sealed room, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
Running Stable, operating easily

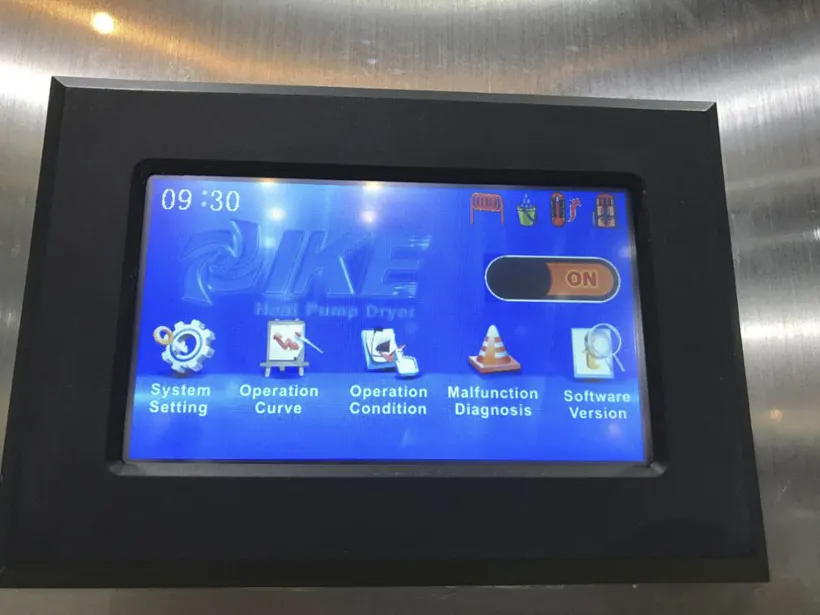

All in one design, operation directly after power switched on. Graphical touch control system, automatic intelligent control and demands no human duty after setting.
Company Features1. With complete supply chain equipped, IKE has made a lot of achievements in cheap food dehydrator industry.
2. Guangdong IKE Industrial Co.,Ltd. has an independent product development center.
3. We have a commitment to sustainability and responsible business. We take full responsibility for every operation by reduced CO2 emissions and water waste during our production. We always adhere to the core idea of "customer-center and human-oriented". This makes our company well recognized and accepted by industry customers. We believe in being Customer-Centric in order to forge a long term alliance with our valued clients and maintaining flexibility and ethics in all our dealings and commitments.
