commercial food dryer machine belt drying line food
1. These drying line are manufactured using quality raw material and are available in various capacities.
2. With drying equipment , we enjoy rich experience to design high quality products. It gained a 60 million USD sole investment from IKE Group to be established
3. commercial food dryer machine and industrial drying equipment make table adjustments less of a hassle. IKE makes foresighted strategic on equipment automation, management system and so on.
4. The Customer Focus Team is how we structure the services that Guangdong IKE Industrial Co.,Ltd. offers to our customers. IKE Industrial is located in the New and High Technology Industrial Park of the City of Meizhou, Guangdong Province
5. With a consistent focus towards quality, we are fulfilling our goal to achieve essential levels of precision in our drying line products. Our products is popular at home and abroad

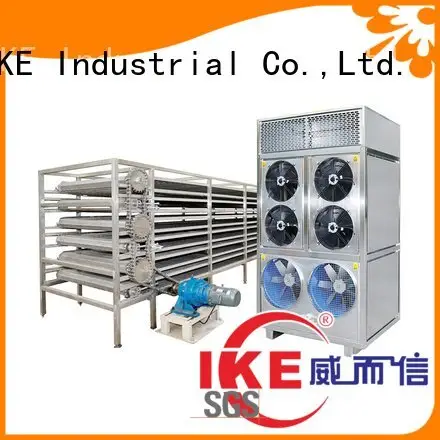

IKE conveyor mesh belt food dehydrator is automatic continuous drying equipment for large-scale production. The equipment can be equipped according to the user’s requirement and the production demands.
Model | Unit | WRH-1200AL | WRH-1200GL |
Power supply | V/Hz | 380V-3N / 50Hz | 380V-3N / 50Hz |
Power input | Kw | 13.0 | 13.0 |
Running current | A | 20 | 20 |
Fast heating-up | Kw | 9.0 | 9.0 |
Maximum Power | Kw | 24 | 24 |
Dehumidification amount | Kg/h | 40 | 36 |
Best Drying Temperature | ℃ | 55 ~63 | 65 ~75 |
Max. hot air Temperature | ℃ | 65 | 80 |
Working Ambient temperature | ℃ | 5~40 | 5~40 |
Noise Level | dB(A) | ≤ 72dB | ≤ 72dB |
Wind volume | m³/h | 4000m*2+2200*4 | 4000m*2+2200*4 |
Machine Dimension(L*W*H) | Mm | 1250*800*1920 | 1250*800*1920 |
Gross Weight | kg | 590 | 595 |
Different Models can be customized based on requirment
Model | Unit | Flow Lines |
Power Supply | V/Hz | 380V~3N/50Hz |
Power Input | Kw | 0.1-8.0kw variable frequencies to adjust |
Maximum Current | A | 10 |
Maximum Power Consumption | Kw | 8.0 |
Layer Number |
| 1-10 layers to choose |
Operation Speed | m/min | 0m/min-2m/min to adjust |
Chain Width | m | 1.0-6.0 to choose |
Chain Material |
| 201, 304, 316 stainless steel to choose |
Chain Length per layer | m | 1.5m-12m to choose |
The automatic belt food dehydrator uses air to transfer heat and remove moisture as the food moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no drops during drying. The balanced drying can be ensured. The dried food will be automatically discharged to a collector.
The running speed of the conveyer belt can be adjusted according to the food character.
Vegetable, fruits, herbs, and many other commercial products that can be deied in a relatively shot time.
Strong wind dehumidification drying in 25℃~65℃, articles does no damage, no moldy and maintain nutrition.
Drying in a closed sealed room, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
The automatic belt food dehydrator can be equipped according to the user’s requirement and the production demands.
Company Features
1. In the course of many years of drying line development, Guangdong IKE Industrial Co.,Ltd. has accumulated a lot of market resources, elite sales team and strong marketing capability.
2. Inquiry! Our Sincerity And Hard Work Has Helped Us Match Our Quality drying equipment, commercial food dryer machine, industrial drying equipment With International Standards. Please Do Not Hesitate To Contact Us If You Need This Product.
3. best affordable dehydrator is eternal tenet of an Guangdong IKE Industrial Co.,Ltd.. Get More Info!
Since 1994
Commercial & Industrial Food Dehydrator Manufacturer
