Commercial and Industrial Food Dehydrator Manufacturer Since 1994.

commercial food dryer machine belt drying line IKE 1
commercial food dryer machine belt drying line IKE 2
commercial food dryer machine belt drying line IKE 1
commercial food dryer machine belt drying line IKE 2

commercial food dryer machine belt drying line IKE

Model Number:
WRH-1200AL/WRH-1200GL
Power Supply:
380V-3N / 50Hz
Power Input:
13.0
Dimension(L*W*H):
1250*800*1920
MOQ:
1 Unit
Place of Origin:
Guangdong, China (Mainland)
Lead Time:
10~30 working days
Warranty:
1 Year
Inquiry
Company Advantages
1. We sincerely hope to cooperate with you for win-win situation. Advanced air-source heat pump water heaters, dryers and other environmental protection and energy-saving products are available
2. We are backed by well-established infrastructure that is equipped with all the necessary equipment. IKE Industrial is a professional food dehydrator manufacturer
3. We are specialised in manufacturing and exporting a premium quality range of'drying line', which are used for specially for different kinds of gold and diamond jewellery. IKE makes foresighted strategic on equipment automation, management system and so on
4. drying equipment can offer moderate commercial food dryer machine and professional quality effect. With over 20 years of development, it has become a diversified group company that integrates new energy, communications, software, broadcast security, travel and hotel services
5. In a flock of industrial drying equipment, drying line has many good virtues such as [拓展关键词. IKE mainly focus on three main product categories, cabinet type dehydrator, embedded dehydrator and conveyor belt dehydrator
◇◆  Product information

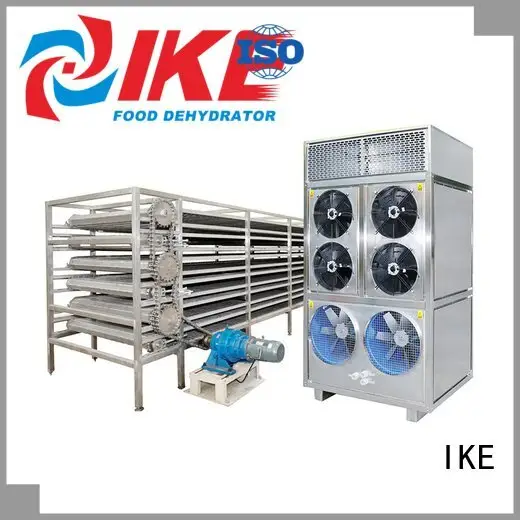

IKE conveyor mesh belt food dehydrator is automatic continuous drying equipment for large-scale production. The equipment can be equipped according to the user’s requirement and the production demands.

Model

Unit

WRH-1200AL

WRH-1200GL

Power supply

V/Hz

380V-3N / 50Hz

380V-3N / 50Hz

Power input

Kw

13.0

13.0

Running current

A

20

20

Fast heating-up

Kw

9.0

9.0

Maximum Power

Kw

24

24

Dehumidification amount

Kg/h

40

36

Best Drying Temperature

55 ~63

65 ~75

Max. hot air Temperature

65

80

Working Ambient temperature

5~40

5~40

Noise Level

dB(A)

≤ 72dB

≤ 72dB

Wind volume

m³/h

4000m*2+2200*4

4000m*2+2200*4

Machine Dimension(L*W*H)

Mm

1250*800*1920

1250*800*1920

Gross Weight

kg

590

595

Different Models can be customized based on requirment

Model

Unit

Flow Lines

Power Supply

V/Hz

380V~3N/50Hz

Power Input

Kw

0.1-8.0kw variable frequencies to adjust

Maximum Current

A

10

Maximum Power Consumption

Kw

8.0

Layer Number



1-10 layers to choose

Operation Speed

m/min

0m/min-2m/min to adjust

Chain Width

m

1.0-6.0 to choose

Chain Material



201, 304, 316 stainless steel to choose

Chain Length per layer

m

1.5m-12m to choose

◇◆  Working principle

The automatic belt food dehydrator uses air to transfer heat and remove moisture as the food moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no drops during drying. The balanced drying can be ensured. The dried food will be automatically discharged to a collector.
The running speed of the conveyer belt can be adjusted according to the food character.

undefined

◇◆  Schematic Structure

undefined

IKE-Customized Conveyor Mesh Belt Large Food Dehydrator | Large Commercial-2

◇◆  Product Application

Vegetable, fruits, herbs, and many other commercial products that can be deied in a relatively shot time.


◇◆  Working Advantages
undefined
Middle and low temperature dehumidification drying

Strong wind dehumidification drying in 25℃~65℃, articles does no damage, no moldy and maintain nutrition.

undefined
Working in wholly sealed drying room, hygiene and energy conservation

Drying in a closed sealed room, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.

undefined
Standard production

The automatic belt food dehydrator can be equipped according to the user’s requirement and the production demands.





Company Features
1. IKE Food Dehydrator is your #1 source for quality, custom and interactive drying line. - drying equipment ensures the high efficiency of mass production.
2. Check Now! The drying line, commercial food dryer machine, industrial drying equipment IKE Offers Are Welcomed By International Customers. Pls Feel Free To Contact Us.
3. Whatever You Go, Go With All Your Heart. IKE Is One Of The Dependable drying equipment, best affordable dehydrator, large commercial dehydrator Manufacturers And Exporters From China. Please Contact Us! - Guangdong IKE Industrial Co.,Ltd. is striving for world-class drying line supplier. Ask Online!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
