Product Details
Want to know more product information? We will provide you with detailed pictures and detailed content of in the following section for your reference.
Application Scope
has a wide range of applications.
Company Advantages1. commercial food dryer machine can be specially tailored according to customers' products and process requirements. With over 20 years of development, it has become a diversified group company that integrates new energy, communications, software, broadcast security, travel and hotel services
2. Our main products cover commercial and residential heat pump water heaters, heat pump dryers, and floor heaters, as well as air conditioners. IKE Food Dehydrator is an internationally renowned manufacturer and exporter of a wide range of industrial drying equipment which are manufactured using state-of-the-art technology to meet strictly with the set industrial standards.
3. Our service team provide customers with service of installation, debug, solution for problems in the drying process. Years of application of drying line,best affordable dehydrator proves the good performances and the good application effect of it.
4. It has a good command of performance and perfect appearance. IKE pays high attention on development of new products and new technology
5. We Are Looking Forward To Cooperating With Customers From All Over The World, Our products is popular at home and abroad,The Customized Design Service Of large commercial dehydrator Makes Guangdong IKE Industrial Co.,Ltd. A Popular Company In The Industry, Customer-Made Is Available. Pls Contact Us Without Hesitation.
6. Owing to our experience and expertise, we are offering our clients a variety of these products. IKE mainly focus on three main product categories, cabinet type dehydrator, embedded dehydrator and conveyor belt dehydrator
◇◆ Product information

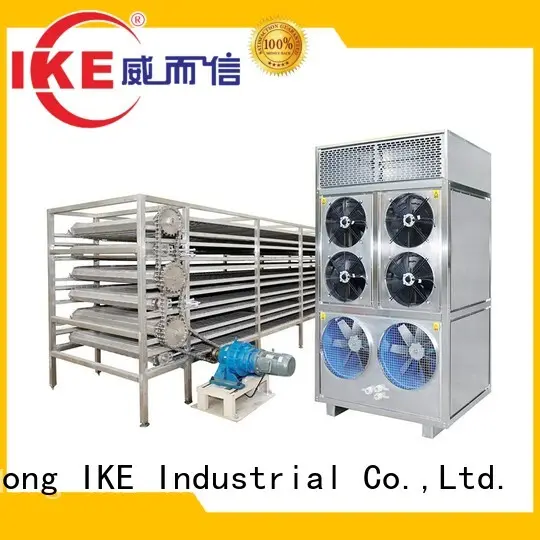

IKE customized conveyor mesh belt large food dehydrator is automatic continuous drying machine for large-scale production. The continuous drying machine can be equipped according to the user’s requirement and the production demands. It is suitable for drying a very large variety of food. Such as noodles, dehydrated vegetables for instant noodles, fruits, seafood, and so on. Contact us for free drying testing!
Model | Unit | WRH-1200AL | WRH-1200GL |
Power supply | V/Hz | 380V-3N / 50Hz | 380V-3N / 50Hz |
Power input | Kw | 13.0 | 13.0 |
Running current | A | 20 | 20 |
Fast heating-up | Kw | 9.0 | 9.0 |
Maximum Power | Kw | 24 | 24 |
Dehumidification amount | Kg/h | 40 | 36 |
Best Drying Temperature | ℃ | 50~65 | 50~80 |
Max. hot air Temperature | ℃ | 65 | 80 |
Working Ambient temperature | ℃ | 5~40 | 5~40 |
Noise Level | dB(A) | ≤ 72dB | ≤ 72dB |
Wind volume | m³/h | 4000m*2+2200*4 | 4000m*2+2200*4 |
Machine Dimension(L*W*H) | Mm | 1250*800*1920 | 1250*800*1920 |
Gross Weight | kg | 390 | 390 |
Different Models can be customized based on requirment
Model | Unit | Flow Lines |
Power Supply | V/Hz | 380V~3N/50Hz |
Power Input | Kw | 0.1-8.0kw variable frequencies to adjust |
Maximum Current | A | 10 |
Maximum Power Consumption | Kw | 8.0 |
Layer Number | | 1-10 layers to choose |
Operation Speed | m/min | 0m/min-2m/min to adjust |
Chain Width | m | 1.0-6.0 to choose |
Chain Material | | 201, 304, 316 stainless steel to choose |
Chain Length per layer | m | 1.5m-12m to choose |
◇◆ Working principle
The automatic belt food dehydrator uses air to transfer heat and remove moisture as the food moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no drops during drying. The balanced drying can be ensured. The dried food will be automatically discharged to a collector.
The running speed of the conveyer belt can be adjusted according to the food character.
◇◆ Schematic Structure
◇◆ Application
Porphyra dehydrating by IKE continuous drying machine.
Noodle dehydrating by IKE continuous drying machine.
◇◆ Working Advantages
1. Middle and low temperature dehumidification drying
The IKE customized conveyor mesh belt large food dehydrator drying fruits and vegetables in 50℃~80℃, articles does no damage, no moldy and maintain nutrition.
2. Use heat pump technology
The IKE customized conveyor mesh belt large food dehydrator with high efficiency through the use of a heat pump system for removing air humidity.
3. Working in wholly sealed drying system, hygiene and energy conservation
Drying in a closed sealed system, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
4. Running Stable, operating easily
Graphical touch control system, automatic intelligent control and demands no human duty after setting.
Company Features1. With the years of continuous efforts, Guangdong IKE Industrial Co.,Ltd. takes a stride in the development of drying line. - Guangdong IKE Industrial Co.,Ltd. is a large professional drying equipment manufacturing company.
2. We have been optimizing and innovating the selection of commercial food dryer machine to match the needs of different customers. - Guangdong IKE Industrial Co.,Ltd. is a leading company which produces high-quality drying line including industrial drying equipment and best affordable dehydrator.
3. Guangdong IKE Industrial Co.,Ltd. focuses on offering five-star customer service for customers. Call! - Customer first has always been IKE sticking to. Call!
