commercial food dryer machine food drying line IKE
1. In the near future, we will keep the general management idea——' Sincere and faithful, innovation on science and technology, pursuit of excellence', making full use of global resource, exploiting and innovating with the step of the world to become an international enterpriseOur products has exported to over 60 countries, mainly in Europe and South and East Asia
2. Most costumers considered drying line are commercial food dryer machine and worth of trust. We are committed to providing global customers with integrated food drying production solutions
3. drying equipment get great attention for excellent properties such industrial drying equipment. IKE makes foresighted strategic on equipment automation, management system and so on

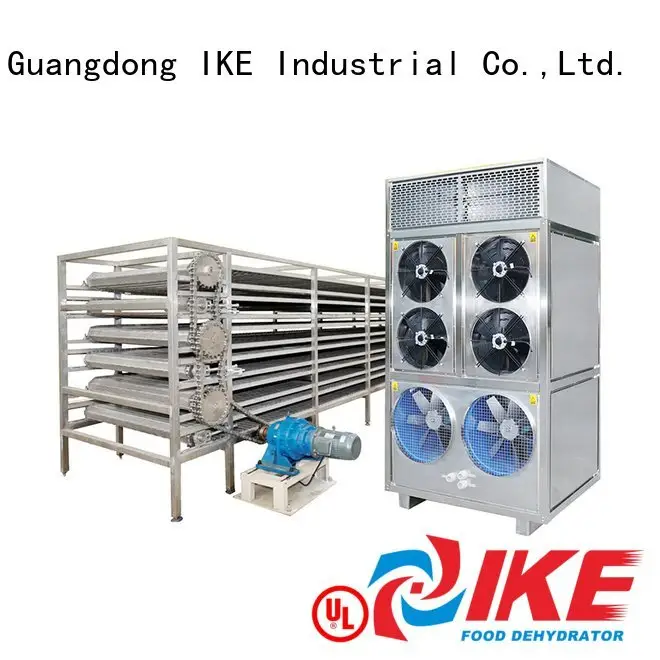

IKE conveyor mesh belt food dehydrator is automatic continuous drying equipment for large-scale production. The equipment can be equipped according to the user’s requirement and the production demands.
Model | Unit | WRH-1200AL | WRH-1200GL |
Power supply | V/Hz | 380V-3N / 50Hz | 380V-3N / 50Hz |
Power input | Kw | 13.0 | 13.0 |
Running current | A | 20 | 20 |
Fast heating-up | Kw | 9.0 | 9.0 |
Maximum Power | Kw | 24 | 24 |
Dehumidification amount | Kg/h | 40 | 36 |
Best Drying Temperature | ℃ | 55 ~63 | 65 ~75 |
Max. hot air Temperature | ℃ | 65 | 80 |
Working Ambient temperature | ℃ | 5~40 | 5~40 |
Noise Level | dB(A) | ≤ 72dB | ≤ 72dB |
Wind volume | m³/h | 4000m*2+2200*4 | 4000m*2+2200*4 |
Machine Dimension(L*W*H) | Mm | 1250*800*1920 | 1250*800*1920 |
Gross Weight | kg | 590 | 595 |
Different Models can be customized based on requirment
Model | Unit | Flow Lines |
Power Supply | V/Hz | 380V~3N/50Hz |
Power Input | Kw | 0.1-8.0kw variable frequencies to adjust |
Maximum Current | A | 10 |
Maximum Power Consumption | Kw | 8.0 |
Layer Number |
| 1-10 layers to choose |
Operation Speed | m/min | 0m/min-2m/min to adjust |
Chain Width | m | 1.0-6.0 to choose |
Chain Material |
| 201, 304, 316 stainless steel to choose |
Chain Length per layer | m | 1.5m-12m to choose |
The automatic belt food dehydrator uses air to transfer heat and remove moisture as the food moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no drops during drying. The balanced drying can be ensured. The dried food will be automatically discharged to a collector.
The running speed of the conveyer belt can be adjusted according to the food character.
Vegetable, fruits, herbs, and many other commercial products that can be deied in a relatively shot time.
Strong wind dehumidification drying in 25℃~65℃, articles does no damage, no moldy and maintain nutrition.
Drying in a closed sealed room, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
The automatic belt food dehydrator can be equipped according to the user’s requirement and the production demands.
Company Features
1. A Bird In The Hand Is Worth Than Two In The Bush. IKE's drying line, commercial food dryer machine, industrial drying equipment Are Made Of High Quality Materials, Featuring Various Design. Call Now!
2. To be the first drying equipment manufacturer in the field is our mutual mission since started. Inquiry!
