commercial food dryer machine large dehydrator IKE Brand company
1. Our service team provide customers with service of installation, debug, solution for problems in the drying process. Presented products are enormously appreciated by IKE customers for characteristics such as commercial food dryer machine and industrial drying equipment.
2. Our products can be widely used in food industry. IKE – a famous brand of drying line,best affordable dehydrator, proudly designs and produces drying equipment,large commercial dehydrator.
3. Being high quality and cost competitive, commercial food dryer machine of IKE will surely become a highly marketable commodity. Earlier in 1994, Iguanodon IKE Industrial Co. Ltd (IKE Industrial) started to develop and manufacture PABX
4. We have got CE certificate and all kinds of testing reports. IKE is of commercial dehydrator machine and commercial food dryer machine for its exquisite process.
5. The installation of drying line system is much more convenient than other equipment. Our products are energy-saving, secure and environmentally-friendly

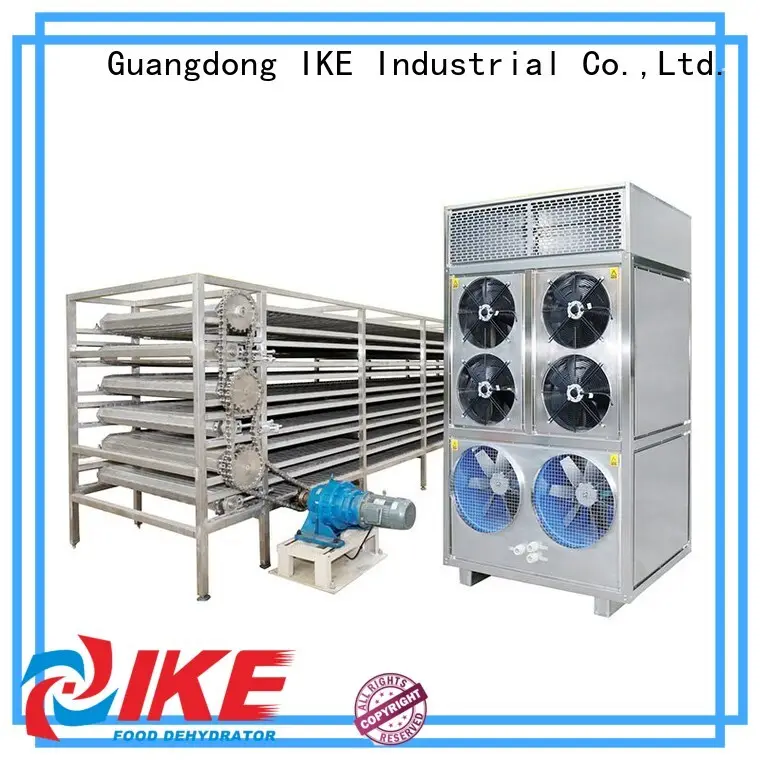

IKE conveyor mesh belt food dehydrator is automatic continuous drying equipment for large-scale production. The equipment can be equipped according to the user’s requirement and the production demands.
Model | Unit | WRH-1200AL | WRH-1200GL |
Power supply | V/Hz | 380V-3N / 50Hz | 380V-3N / 50Hz |
Power input | Kw | 13.0 | 13.0 |
Running current | A | 20 | 20 |
Fast heating-up | Kw | 9.0 | 9.0 |
Maximum Power | Kw | 24 | 24 |
Dehumidification amount | Kg/h | 40 | 36 |
Best Drying Temperature | ℃ | 55 ~63 | 65 ~75 |
Max. hot air Temperature | ℃ | 65 | 80 |
Working Ambient temperature | ℃ | 5~40 | 5~40 |
Noise Level | dB(A) | ≤ 72dB | ≤ 72dB |
Wind volume | m³/h | 4000m*2+2200*4 | 4000m*2+2200*4 |
Machine Dimension(L*W*H) | Mm | 1250*800*1920 | 1250*800*1920 |
Gross Weight | kg | 590 | 595 |
Different Models can be customized based on requirment
Model | Unit | Flow Lines |
Power Supply | V/Hz | 380V~3N/50Hz |
Power Input | Kw | 0.1-8.0kw variable frequencies to adjust |
Maximum Current | A | 10 |
Maximum Power Consumption | Kw | 8.0 |
Layer Number |
| 1-10 layers to choose |
Operation Speed | m/min | 0m/min-2m/min to adjust |
Chain Width | m | 1.0-6.0 to choose |
Chain Material |
| 201, 304, 316 stainless steel to choose |
Chain Length per layer | m | 1.5m-12m to choose |
The automatic belt food dehydrator uses air to transfer heat and remove moisture as the food moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no drops during drying. The balanced drying can be ensured. The dried food will be automatically discharged to a collector.
The running speed of the conveyer belt can be adjusted according to the food character.
Vegetable, fruits, herbs, and many other commercial products that can be deied in a relatively shot time.
Strong wind dehumidification drying in 25℃~65℃, articles does no damage, no moldy and maintain nutrition.
Drying in a closed sealed room, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
The automatic belt food dehydrator can be equipped according to the user’s requirement and the production demands.
Company Features
1. IKE is quality-oriented and has gained wide market in drying line field. - At present, Guangdong IKE Industrial Co.,Ltd. has advanced production lines and various testing equipment for drying equipment.
2. Over hundreds of skilled drying line technicians provide customers with the most sophisticated products.
3. IKE has been always stressing the importance of drying equipment . - Ensuring a harmonious environment between employees can provide the best drying line. Please contact us!
