conveyor drying line customized for fruit IKE
1. IKE conveyor manufacturers goes through strict QC procedure.
2. It is in high accordance with the first-class quality inspection standards.
3. You can make special adjustments on our drying line .
4. Guangdong IKE Industrial Co.,Ltd. undertakes to ensure that its production complies with the quality assurance system.
5. Guangdong IKE Industrial Co.,Ltd. is familiar with the process of foreign trade import and export business.

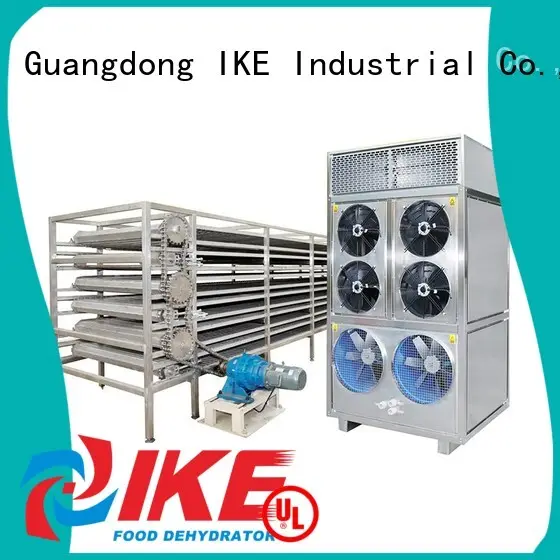

IKE customized conveyor mesh belt large food dehydrator is automatic continuous drying machine for large-scale production. The continuous drying machine can be equipped according to the user’s requirement and the production demands. It is suitable for drying a very large variety of food. Such as noodles, dehydrated vegetables for instant noodles, fruits, seafood, and so on. Contact us for free drying testing!
Model | Unit | WRH-1200AL | WRH-1200GL |
Power supply | V/Hz | 380V-3N / 50Hz | 380V-3N / 50Hz |
Power input | Kw | 13.0 | 13.0 |
Running current | A | 20 | 20 |
Fast heating-up | Kw | 9.0 | 9.0 |
Maximum Power | Kw | 24 | 24 |
Dehumidification amount | Kg/h | 40 | 36 |
Best Drying Temperature | ℃ | 50~65 | 50~80 |
Max. hot air Temperature | ℃ | 65 | 80 |
Working Ambient temperature | ℃ | 5~40 | 5~40 |
Noise Level | dB(A) | ≤ 72dB | ≤ 72dB |
Wind volume | m³/h | 4000m*2+2200*4 | 4000m*2+2200*4 |
Machine Dimension(L*W*H) | Mm | 1250*800*1920 | 1250*800*1920 |
Gross Weight | kg | 390 | 390 |
Different Models can be customized based on requirment
Model | Unit | Flow Lines |
Power Supply | V/Hz | 380V~3N/50Hz |
Power Input | Kw | 0.1-8.0kw variable frequencies to adjust |
Maximum Current | A | 10 |
Maximum Power Consumption | Kw | 8.0 |
Layer Number |
| 1-10 layers to choose |
Operation Speed | m/min | 0m/min-2m/min to adjust |
Chain Width | m | 1.0-6.0 to choose |
Chain Material |
| 201, 304, 316 stainless steel to choose |
Chain Length per layer | m | 1.5m-12m to choose |
The automatic belt food dehydrator uses air to transfer heat and remove moisture as the food moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no drops during drying. The balanced drying can be ensured. The dried food will be automatically discharged to a collector.
The running speed of the conveyer belt can be adjusted according to the food character.
1. Middle and low temperature dehumidification drying
The IKE customized conveyor mesh belt large food dehydrator drying fruits and vegetables in 50℃~80℃, articles does no damage, no moldy and maintain nutrition.
2. Use heat pump technology
The IKE customized conveyor mesh belt large food dehydrator with high efficiency through the use of a heat pump system for removing air humidity.
3. Working in wholly sealed drying system, hygiene and energy conservation
Drying in a closed sealed system, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
4. Running Stable, operating easily
Graphical touch control system, automatic intelligent control and demands no human duty after setting.
Company Features
1. With rich experience, Guangdong IKE Industrial Co.,Ltd. is unanimously acknowledged by industry people and customers.
2. Updating the equipment to manufacture drying line can make IKE to win more customers.
3. Our technician will make a professional solution and show you how to operate step by step for our metal conveyor belt . Inquire now! Guangdong IKE Industrial Co.,Ltd. render conveyor manufacturers as its eternal tenet. Inquire now! conveyor belt material is the soul of Guangdong IKE Industrial Co.,Ltd.'s continuous development. Inquire now! IKE highly values every detail during cooperation with customers. Inquire now!
