Specifications for WRH-1200G industrial best large beef jerky dehydrator | ||
Main machine WRH-1200G | Material | Stainless Steel |
Capacity | 800~1500Kg | |
Power Supply | 380V-3N / 50Hz / 60Hz | |
Power Input | 13kw | |
Running Current | 20A | |
Fast heating-up | 9kw | |
Maximum Power | 23kw | |
Dehydration Amount | 40Kg/h (@50,80%) | |
Working Temperature | 50-65℃ | |
Noise Level | ≤72dB(A) | |
Wind Volume | 4000m³/h*2 | |
Machine Dimension(L*W*H) | 1800*800*1620mm | |
Net Weight | 350Kg | |
Gross Weight | 370Kg | |
Drying house | Material | Polyurethane |
Thinkness | 100m | |
Size | 5000*2650*2700mm | |
Payment terms | 1, We can offer different pricing of FOB, CIF and C&F. 2, For established customers, we will offer more favorable payment terms. | |
Shipping | 1, We offer FOB Guangzhou and FOB Shenzhen to our customers. |

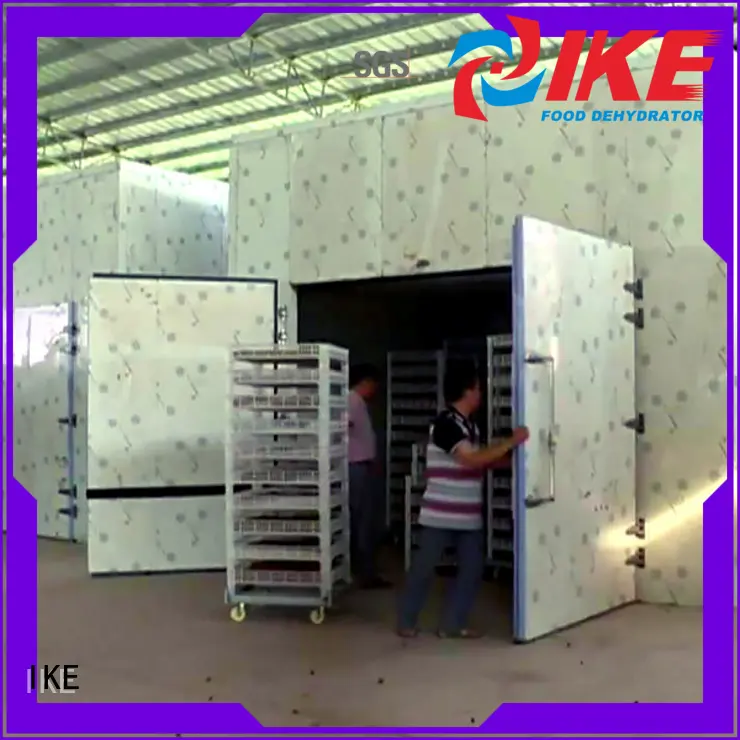

Based on the drying characteristics of the material to be dried, you can build your own drying room. After completion of the drying room, one simply pushes WRH-1200G large beef jerky dehydrator into the house and connects it to the power supply. This is very flexible and convenient.
Even if the amount of moisture in the material may not be very high, the inner space of the drying room cannot be too large. An overly sized drying house will affect the efficiency of the food dehydrators.
1. Material : 100mm Polyurethane insulation board
2. Size of WRH-1200G drying room (L*W*H): 5000mm×2650mm×2500mm
3. WRH-1200G drying room Door Size(W*H): 1100*1900mm
4. The windshield has 6 laminated foam boards. size: 1250*950*50mm
5. It can use 3Fans as return airflow. as shown on the picture.
6. Installing a foam board on the fan requires a modular stainless steel bracket
7. We recommend opening the hole for drying room after installing WRH-1200G.
1. Material : Stainless Steel 201
2. Size of the rack (L*W*H) :1200*850*1750mm
3. The number of layers is 25, the distance between layers is 60mm, and 50 trays can be placed in each rack.
1. Material : stainless Steel 304
2. Aperture:5*5mm
3. Size : 780*540*30mm
IKE drying equipment help farmers to produce high-quality dehydrated longan and solve difficult problems in longan sales.
