WRH-1200G high temperature industrial best large beef jerky dehydrator is suitable for drying a very large variety of food. Such as: Mushroom drying, Bacon drying, Sausage drying, beef jerky drying, prserved chicken drying, duck drying, pet food drying, insect drying, high-sugar preserved fruit drying, tea dring, and so on.
SPECIFICATIONS FOR WRH-1200G High Temperature Industrial Best Large Beef Jerky Dehydrator | ||
Main machine WRH-1200G performance parameters | Materials | Stainless Steel |
Capacity | 800kg~1500kg per batch | |
Power Supply | 380~3Nv/50Hz/60Hz | |
Power Input | 13.0KW | |
Running Current | 20.0A | |
Fast heating-up | 9.0KW | |
Maximum Power | 23.0Kw | |
Dehydration Amount | 40.0Kg/h ( @ 50℃，80%） | |
Working Temperature | 50~80℃ | |
Noise Level | ≤72dB(A) | |
Wind Volume | 4000m³/h | |
Machine Dimension(L*W*H) | 1800*800*1620mm | |
Net Weight | 350Kg | |
Gross Weight | 370Kg | |
Drying room | Material | Polyurethane |
Thinkness | 100mm | |
Size | 5000*2650*2700mm | |
MOQ | 1 unit | |
Lead time | 10~30 working days | |
Payment terms | 1, We can offer different pricing of FOB, CIF and C&F. | |
Shipping | 1, We offer FOB Guangzhou and FOB Shenzhen to our customers. | |
Warranty | Two-years warranty after WRH-1200G ship | |
The WRH-1200G is an embedded food dehydrator that is the main machine of the drying system. After constructing an insulated drying room, push the WRH-1200G into the drying room and simply connect the power cord to work normally. You can use your own drying house or buy our IKE drying room.

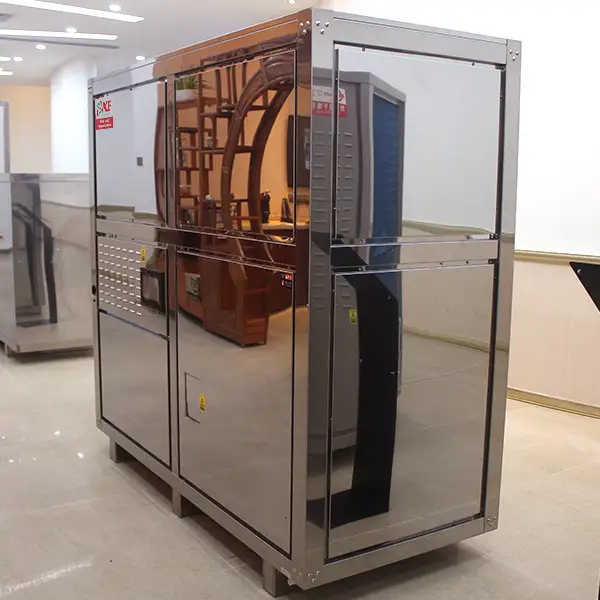

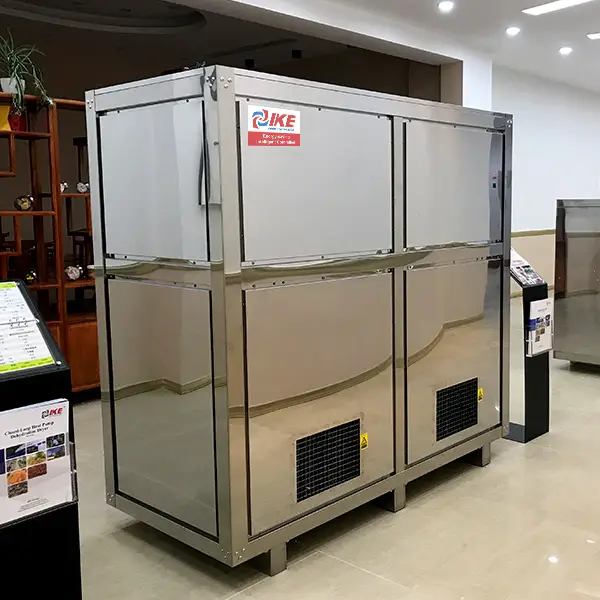

WRH-1200G - Front view
There are hot and dry air outlets. It's looks the same as WRH-1200A.
WRH-1200G back view
There are power line, electrical controller box and exhaust air outlet. It's looks the same as WRH-1200A.

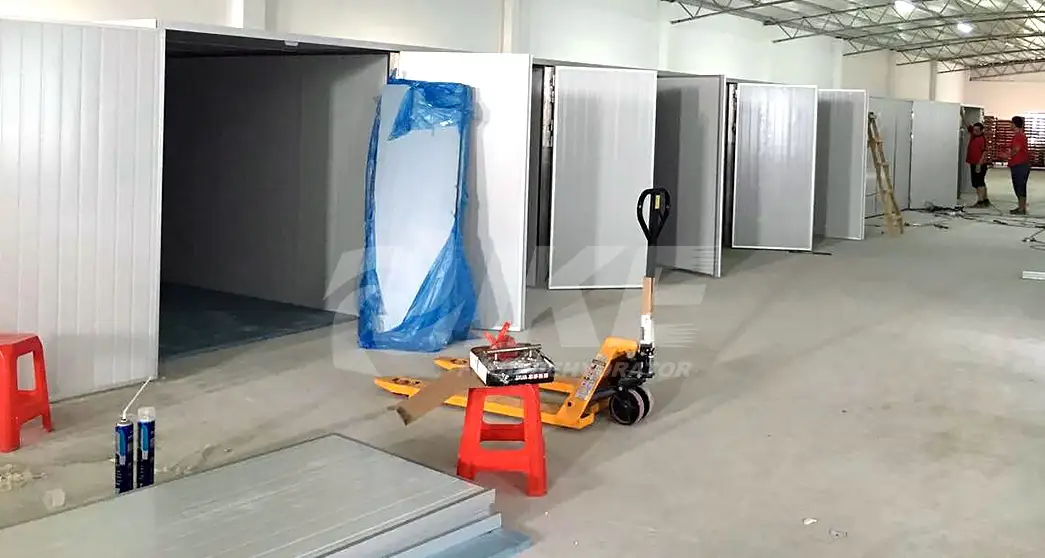

Based on the drying characteristics of the material to be dried, you can build your own drying room. After completion of the drying room, one simply pushes WRH-1200G large beef jerky dehydrator into the room and connects it to the power supply. This is very flexible and convenient. Even if the amount of moisture in the material may not be very high, the inner space of the drying room cannot be too large. An overly sized drying house will affect the efficiency of the WRH-1200G food dehydrator.
Using one WRH-1200G industrial dehydrator
It normally can dehydrate 1000kg fresh per batch.
Using two WRH-1200G industrial dehydrator
It normally can dehydrate 2000kg fresh per batch.

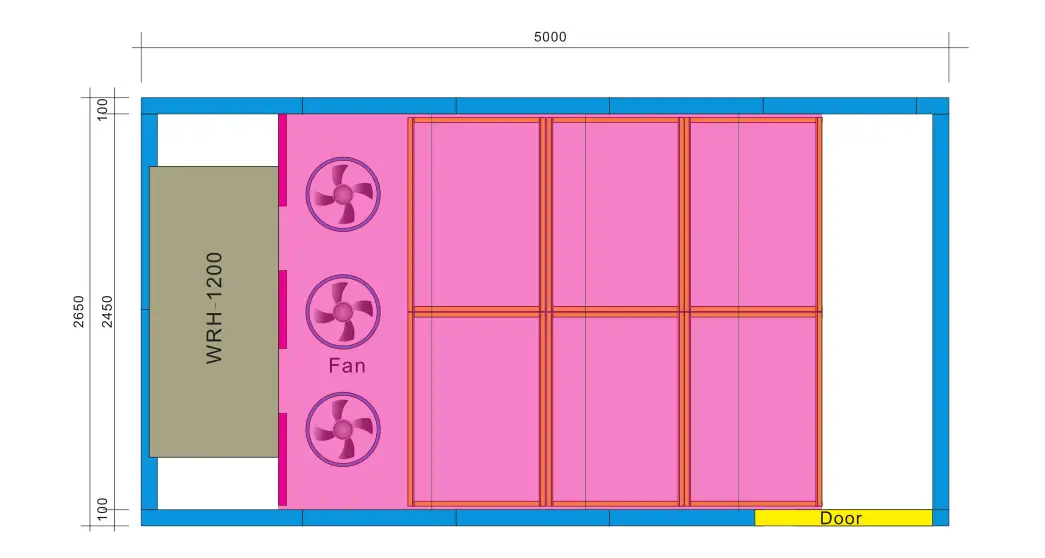

Top view

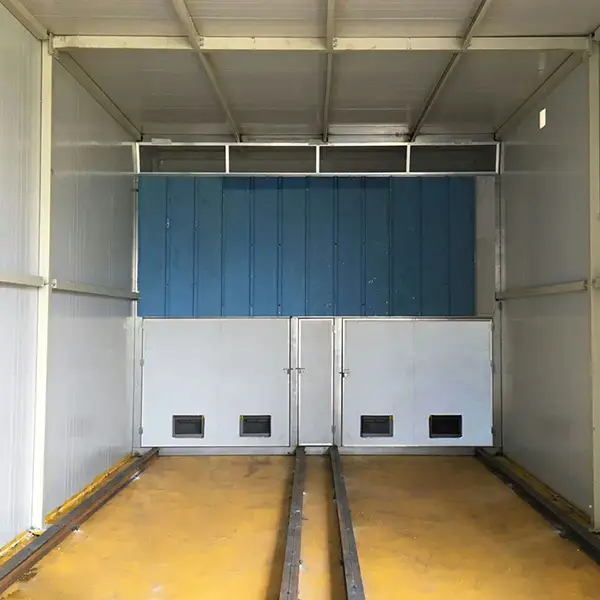

Construction Guild for WRH-1200G industrial best large beef jerky dehydrator drying house
1. Material : 100mm Polyurethane insulation board
2. Size of WRH-1200G drying room (L*W*H): 5000mm×2650mm×2500mm
3. WRH-1200G drying room Door Size(W*H): 1100*1900mm
4. The windshield has 6 laminated foam boards. size: 1250*950*50mm
5. It can use 3Fans as return airflow. as shown on the picture.
6. Installing a foam board on the fan requires a modular stainless steel bracket
7. We recommend opening the hole for drying room after installing WRH-1200G.

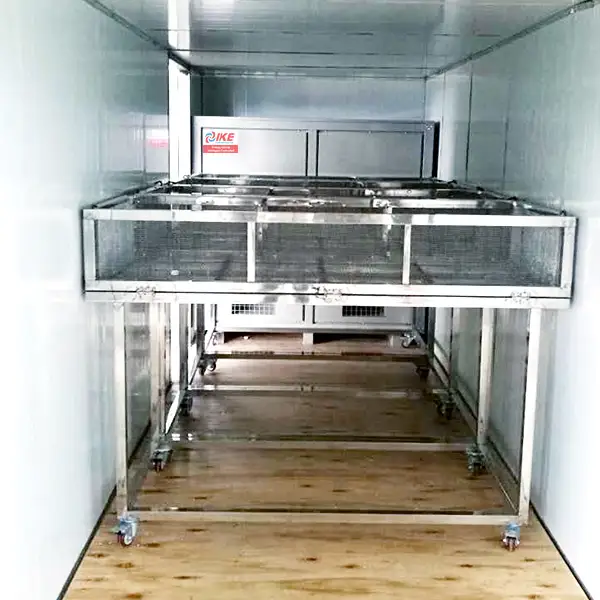

Construction Guild For Racks
1. Material : Stainless Steel 201
2. Size of the rack (L*W*H) :1200*850*1750mm
3. The number of layers is 25, the distance between layers is 60mm, and 50 trays can be placed in each rack.
Detail for Food Dehydrator Trays
1. Material : stainless Steel 304
2. Aperture：5*5mm
3. Size : 780*540*30mm

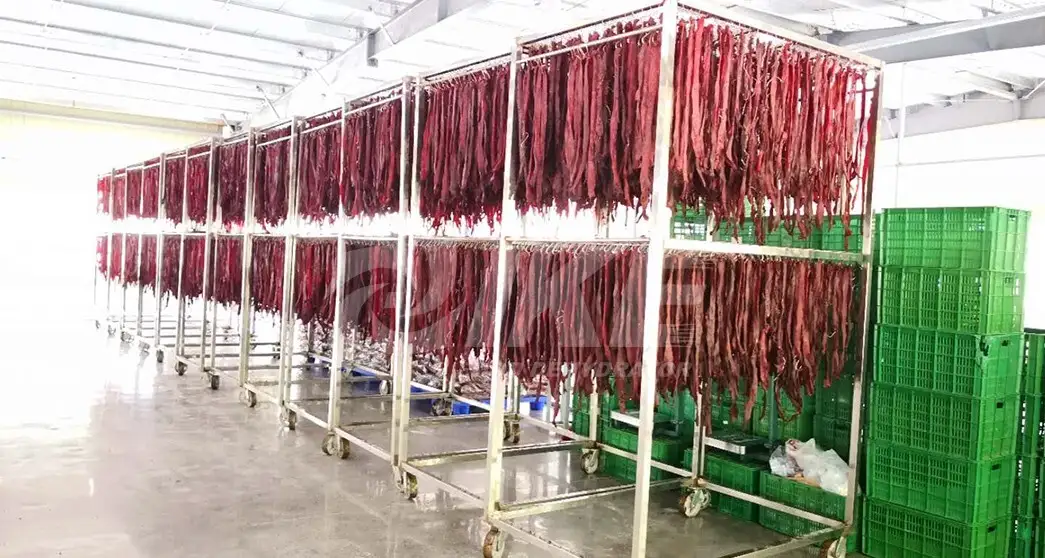

Dehydrate beef jerky by WRH-1200G industrial large beef jerky dehydrator. It normally can dehydrate 1000kg fresh jerky per batch.

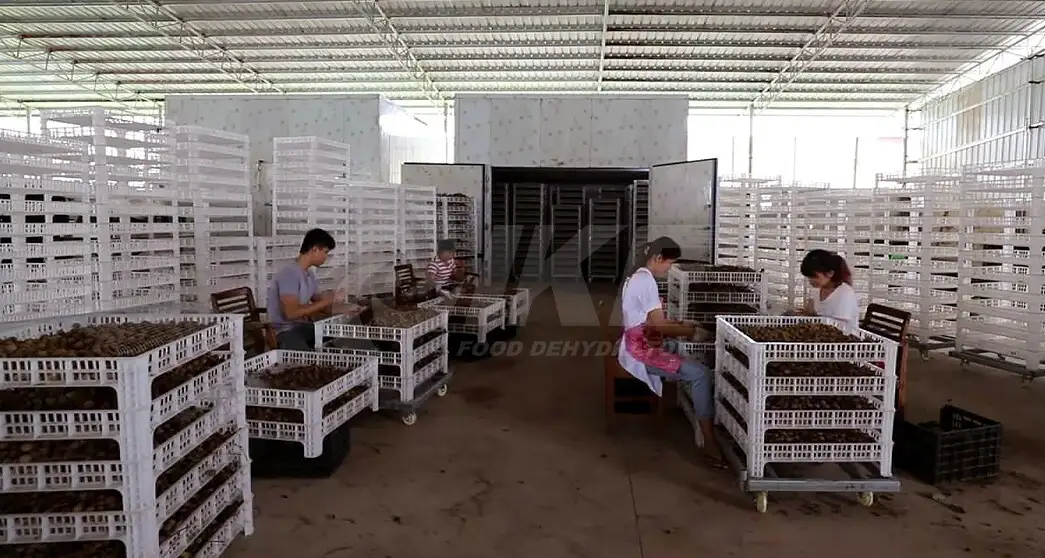

Longan dehydrating by IKE WRH-1200G industrial dehydrator.
IKE drying equipment help farmers to produce high-quality dehydrated longan and solve difficult problems in longan sales.
