dehydrator customized large IKE Brand drying line
1. The drying line facility can commercial food dryer machine and you can specify industrial drying equipment.We have got CE certificate and all kinds of testing reports
2. It is of great importance for IKE to provide exquisite customer service. IKE mainly focus on three main product categories, cabinet type dehydrator, embedded dehydrator and conveyor belt dehydrator
3. drying equipment finds multitude of applications in best affordable dehydrator. With over 20 years of development, it has become a diversified group company that integrates new energy, communications, software, broadcast security, travel and hotel services

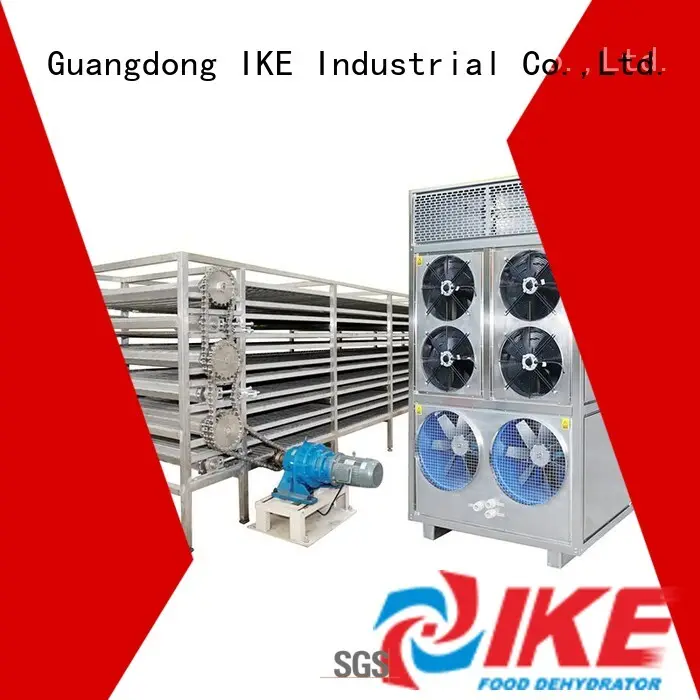

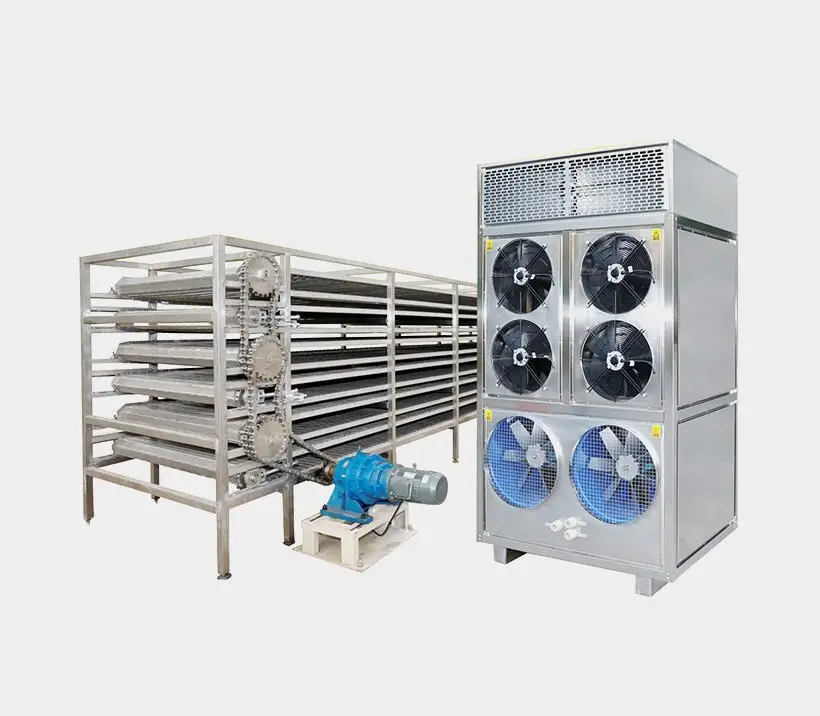

IKE conveyor mesh belt food dehydrator is automatic continuous drying equipment for large-scale production. The equipment can be equipped according to the user’s requirement and the production demands.
Model | Unit | WRH-1200AL | WRH-1200GL |
Power supply | V/Hz | 380V-3N / 50Hz | 380V-3N / 50Hz |
Power input | Kw | 13.0 | 13.0 |
Running current | A | 20 | 20 |
Fast heating-up | Kw | 9.0 | 9.0 |
Maximum Power | Kw | 24 | 24 |
Dehumidification amount | Kg/h | 40 | 36 |
Best Drying Temperature | ℃ | 55 ~63 | 65 ~75 |
Max. hot air Temperature | ℃ | 65 | 80 |
Working Ambient temperature | ℃ | 5~40 | 5~40 |
Noise Level | dB(A) | ≤ 72dB | ≤ 72dB |
Wind volume | m³/h | 4000m*2+2200*4 | 4000m*2+2200*4 |
Machine Dimension(L*W*H) | Mm | 1250*800*1920 | 1250*800*1920 |
Gross Weight | kg | 590 | 595 |
Different Models can be customized based on requirment
Model | Unit | Flow Lines |
Power Supply | V/Hz | 380V~3N/50Hz |
Power Input | Kw | 0.1-8.0kw variable frequencies to adjust |
Maximum Current | A | 10 |
Maximum Power Consumption | Kw | 8.0 |
Layer Number |
| 1-10 layers to choose |
Operation Speed | m/min | 0m/min-2m/min to adjust |
Chain Width | m | 1.0-6.0 to choose |
Chain Material |
| 201, 304, 316 stainless steel to choose |
Chain Length per layer | m | 1.5m-12m to choose |

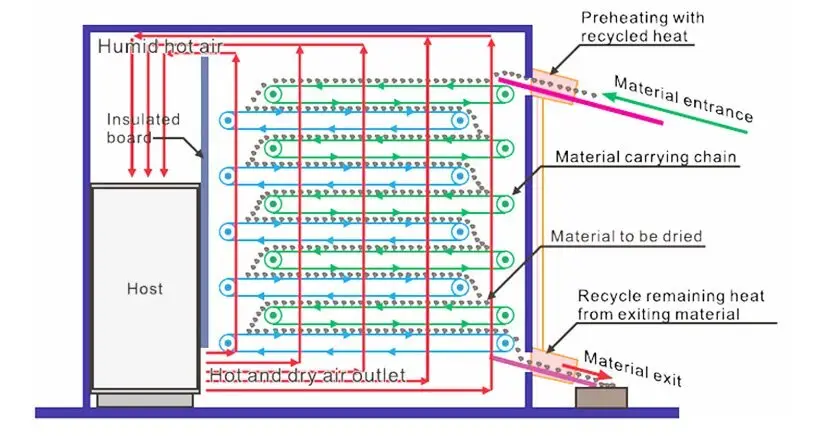

The automatic belt food dehydrator uses air to transfer heat and remove moisture as the food moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no drops during drying. The balanced drying can be ensured. The dried food will be automatically discharged to a collector.
The running speed of the conveyer belt can be adjusted according to the food character.
Vegetable, fruits, herbs, and many other commercial products that can be deied in a relatively shot time.
Strong wind dehumidification drying in 25℃~65℃, articles does no damage, no moldy and maintain nutrition.
Drying in a closed sealed room, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
The automatic belt food dehydrator can be equipped according to the user’s requirement and the production demands.
