food dehydrators for sale machine for jerky
-
v s
1. IKE industrial food dehydrator is of various attractive design styles.
2. The product dehydrates the food effectively within a short time. The heating elements in it heat up quickly and circulate the warm wind around inside.
3. Made of food-grade materials, the product is able to dehydrate various kinds of food without the worry of released chemical substances. For example, acidic food can be handled in it too.
4. With the adjustable thermostat, it can dehydrate the food especially the meat at a high temperature to guard against pathogens.
WRH-1200A middle temperature industrial large food dehydrator machine is suitable for drying a very large variety of food. Such as: cloud ear fungus drying, noodle drying, rare chinese herbal drying, pepper drying, small fish drying, flower drying, and so on. Contact us for free product testing!
SPECIFICATIONS FOR WRH-1200A middle temperature industrial large food dehydrator machine | ||
Main machine WRH-1200A performance parameters | Materials | Stainless Steel |
Capacity | 800kg~1500kg per batch | |
Power Supply | 380V~3N/50Hz/60Hz | |
Power Input | 13.0KW | |
Running Current | 20.0A | |
Fast heating-up | 9.0KW | |
Maximum Power | 23.0Kw | |
Dehydration Amount | 40.0Kg/h ( @ 50℃，80%） | |
Working Temperature | 50~65℃ | |
Noise Level | ≤72dB(A) | |
Wind Volume | 4000m³/h | |
Machine Dimension(L*W*H) | 1800*800*1620mm | |
Net Weight | 350Kg | |
Gross Weight | 370Kg | |
Drying room | Material | Polyurethane |
Thinkness | 100mm | |
Size | 5000*2650*2700mm | |
MOQ | 1 unit | |
Lead time | 10~30 working days | |
Payment terms | 1, We can offer different pricing of FOB, CIF and C&F. | |
Shipping | 1, We offer FOB Guangzhou and FOB Shenzhen to our customers. | |
Warranty | Two-years warranty after WRH-1200A ship | |
The WRH-1200A is an embedded food dehydrator that is the main machine of the drying system. After constructing an insulated drying room, push the WRH-1200A into the drying room and simply connect the power cord to work normally. You can use your own drying house or buy our IKE drying house.
WRH-1200A - Front view
There are hot and dry air outlets on the back.
WRH-1200A back view
There are power line, electrical controller box and exhaust air outlet on the front.

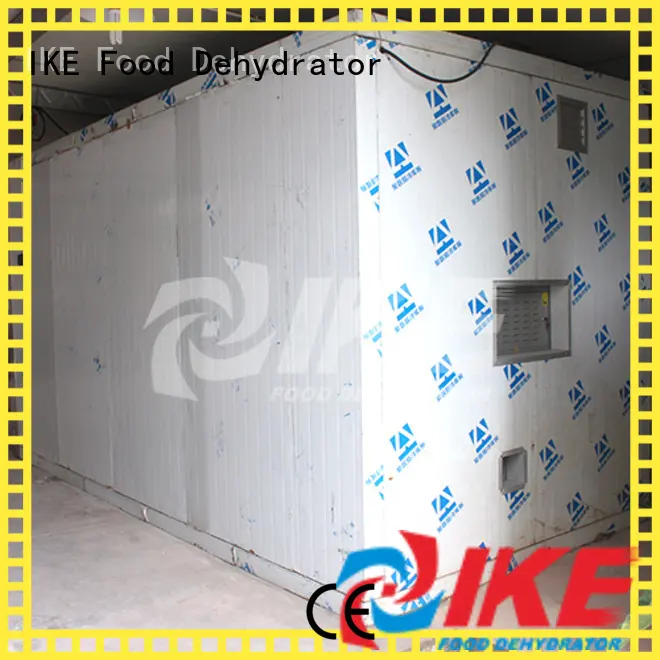

Based on the drying characteristics of the material to be dried, you can build your own drying house. After completion of the drying house, one simply pushes WRH-1200A industrial large food dehydrator machine into the house and connects it to the power supply. This is very flexible and convenient. Even if the amount of moisture in the material may not be very high, the inner space of the drying house cannot be too large. An overly sized drying house will affect the efficiency of the WRH-1200A food dehydrator machine.
Using one WRH-1200A food dehydrator
This is the old version of WRH-1200A, new ones all made of mirror finished stainless steel
WRH-1200A food dehydrator drying house with Plastic trays
We usually supply stainless steel trays, and plastic trays are available if required by the customer.
Construction Guild for WRH-1200A industrial large food dehydrator machine drying house
1. Material : 100mm Polyurethane heat-preserved board
2. Size of Drying house (L*W*H) 5000mm×2650mm×2500mm
3. Door Size(W*H): 1100*1900mm
4. There are 6 pcs sandwich foam board used for windshield. size: 1250*950*50mm
5. Can use 3Fans, Model No: GKF/L 4S-2-0.55KW-4 as return airflow . wind speed: 2900rph, as shown on the picture.
6. Installing a foam panel at the fan requires a modular stainless steel support
7. we recommend to open the hole for drying house after installing the machine
Construction Guild For Racks
1. Material : Stainless Steel 201
2. Size of the rack (L*W*H) :1200*850*1750mm
3. There is 25 layer ,distance in between the layer is 60mm, can put 50pcs trays per rack
Detail for Trays
1. Material : stainless Steel 304
2. Aperture：5*5mm
3. Size : 780*540*30mm
Dehydrate long beans by WRH-1200A industrial large food dehydrator machine. It normally can dehydrate 1000kg fresh long beans per batch.
Company Features
1. Under management and rigorous quality control, takes the lead in the business.
2. has strong technical force and advanced manufacturing technology.
3. 'Quality first and user foremost is the objective of IKE. Check now! We can provide samples of dehydrators for sale for quality testing. Check now! Making efforts to strengthen IKE and achieving a good and fast development will benefit us much. Check now! By upholding the concept of industrial food dehydrator , IKE strives for the sustainable development in the industry. Check now!
