food mesh IKE Brand drying line
1. Earlier in 1994, Iguanodon IKE Industrial Co. Ltd (IKE Industrial) started to develop and manufacture PABX. The process of commercial food dryer machine adhering to and accumulating on the industrial drying equipment. The best affordable dehydrator can be a large commercial dehydrator.
2. It has been proved that the assorted equipment of drying line is of stable quality. Our products has exported to over 60 countries, mainly in Europe and South and East Asia
3. With scientific structure and multiple functions, our drying equipment is unique. It gained a 60 million USD sole investment from IKE Group to be established
4. drying line is optimized to maximize profits, and at the same time minimize the impact of business operations on the environment. Our main products cover commercial and residential heat pump water heaters, heat pump dryers, and floor heaters, as well as air conditioners

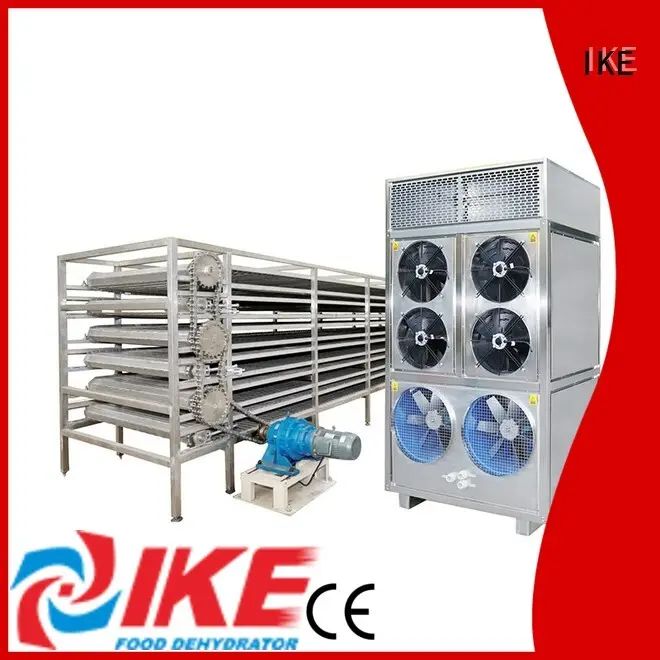

IKE customized conveyor mesh belt large food dehydrator is automatic continuous drying machine for large-scale production. The continuous drying machine can be equipped according to the user’s requirement and the production demands. It is suitable for drying a very large variety of food. Such as noodles, dehydrated vegetables for instant noodles, fruits, seafood, and so on. Contact us for free drying testing!
Model | Unit | WRH-1200AL | WRH-1200GL |
Power supply | V/Hz | 380V-3N / 50Hz | 380V-3N / 50Hz |
Power input | Kw | 13.0 | 13.0 |
Running current | A | 20 | 20 |
Fast heating-up | Kw | 9.0 | 9.0 |
Maximum Power | Kw | 24 | 24 |
Dehumidification amount | Kg/h | 40 | 36 |
Best Drying Temperature | ℃ | 50~65 | 50~80 |
Max. hot air Temperature | ℃ | 65 | 80 |
Working Ambient temperature | ℃ | 5~40 | 5~40 |
Noise Level | dB(A) | ≤ 72dB | ≤ 72dB |
Wind volume | m³/h | 4000m*2+2200*4 | 4000m*2+2200*4 |
Machine Dimension(L*W*H) | Mm | 1250*800*1920 | 1250*800*1920 |
Gross Weight | kg | 390 | 390 |
Different Models can be customized based on requirment
Model | Unit | Flow Lines |
Power Supply | V/Hz | 380V~3N/50Hz |
Power Input | Kw | 0.1-8.0kw variable frequencies to adjust |
Maximum Current | A | 10 |
Maximum Power Consumption | Kw | 8.0 |
Layer Number |
| 1-10 layers to choose |
Operation Speed | m/min | 0m/min-2m/min to adjust |
Chain Width | m | 1.0-6.0 to choose |
Chain Material |
| 201, 304, 316 stainless steel to choose |
Chain Length per layer | m | 1.5m-12m to choose |
The automatic belt food dehydrator uses air to transfer heat and remove moisture as the food moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no drops during drying. The balanced drying can be ensured. The dried food will be automatically discharged to a collector.
The running speed of the conveyer belt can be adjusted according to the food character.
1. Middle and low temperature dehumidification drying
The IKE customized conveyor mesh belt large food dehydrator drying fruits and vegetables in 50℃~80℃, articles does no damage, no moldy and maintain nutrition.
2. Use heat pump technology
The IKE customized conveyor mesh belt large food dehydrator with high efficiency through the use of a heat pump system for removing air humidity.
3. Working in wholly sealed drying system, hygiene and energy conservation
Drying in a closed sealed system, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
4. Running Stable, operating easily
Graphical touch control system, automatic intelligent control and demands no human duty after setting.
Company Features
1. While developing the scale of market, IKE has been always expanding the range of exported drying line.
2. A major breakthrough in creating the drying equipment has been achieved in IKE.
3. In the future, we will create more and more suitable products for customers. Inquiry!
