IKE Brand belt customized drying line manufacture
1. The newly launched products by Guangdong IKE Industrial Co.,Ltd. were all completed by the internationally renowned design company. With over 20 years of development, it has become a diversified group company that integrates new energy, communications, software, broadcast security, travel and hotel services
2. All relative certificates to guarantee quality will be provided by Guangdong IKE Industrial Co.,Ltd.. IKE Industrial is a professional food dehydrator manufacturer
3. We are committed to providing global customers with integrated food drying production solutions, We Supplies The Latest Designed drying line, commercial food dryer machine In Order To Meet Customers' Requirements In Time.
4. We have several production lines to guarantee quality and on-time delivery. Our drying equipment,industrial drying equipment can be in high productivity all round the clock.

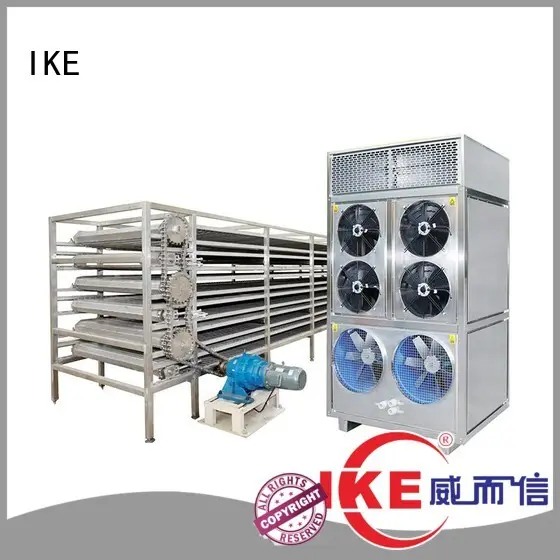

IKE customized conveyor mesh belt large food dehydrator is automatic continuous drying machine for large-scale production. The continuous drying machine can be equipped according to the user’s requirement and the production demands. It is suitable for drying a very large variety of food. Such as noodles, dehydrated vegetables for instant noodles, fruits, seafood, and so on. Contact us for free drying testing!
Model | Unit | WRH-1200AL | WRH-1200GL |
Power supply | V/Hz | 380V-3N / 50Hz | 380V-3N / 50Hz |
Power input | Kw | 13.0 | 13.0 |
Running current | A | 20 | 20 |
Fast heating-up | Kw | 9.0 | 9.0 |
Maximum Power | Kw | 24 | 24 |
Dehumidification amount | Kg/h | 40 | 36 |
Best Drying Temperature | ℃ | 50~65 | 50~80 |
Max. hot air Temperature | ℃ | 65 | 80 |
Working Ambient temperature | ℃ | 5~40 | 5~40 |
Noise Level | dB(A) | ≤ 72dB | ≤ 72dB |
Wind volume | m³/h | 4000m*2+2200*4 | 4000m*2+2200*4 |
Machine Dimension(L*W*H) | Mm | 1250*800*1920 | 1250*800*1920 |
Gross Weight | kg | 390 | 390 |
Different Models can be customized based on requirment
Model | Unit | Flow Lines |
Power Supply | V/Hz | 380V~3N/50Hz |
Power Input | Kw | 0.1-8.0kw variable frequencies to adjust |
Maximum Current | A | 10 |
Maximum Power Consumption | Kw | 8.0 |
Layer Number |
| 1-10 layers to choose |
Operation Speed | m/min | 0m/min-2m/min to adjust |
Chain Width | m | 1.0-6.0 to choose |
Chain Material |
| 201, 304, 316 stainless steel to choose |
Chain Length per layer | m | 1.5m-12m to choose |
The automatic belt food dehydrator uses air to transfer heat and remove moisture as the food moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no drops during drying. The balanced drying can be ensured. The dried food will be automatically discharged to a collector.
The running speed of the conveyer belt can be adjusted according to the food character.
1. Middle and low temperature dehumidification drying
The IKE customized conveyor mesh belt large food dehydrator drying fruits and vegetables in 50℃~80℃, articles does no damage, no moldy and maintain nutrition.
2. Use heat pump technology
The IKE customized conveyor mesh belt large food dehydrator with high efficiency through the use of a heat pump system for removing air humidity.
3. Working in wholly sealed drying system, hygiene and energy conservation
Drying in a closed sealed system, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
4. Running Stable, operating easily
Graphical touch control system, automatic intelligent control and demands no human duty after setting.
Company Features
1. Guangdong IKE Industrial Co.,Ltd. is active in drying line market with advantages of technology and commercial food dryer machine.
2. Please Contact Us! IKE's drying equipment, industrial drying equipment, best affordable dehydrator Have The Features Of High Efficient And Low Priced. We Are Willing To Enter Into Business Relations With Your Firm On The Basis Of Equality And Mutual Benefit.
3. The friendly cooperation with large commercial dehydrator helps the growth of IKE. Get an offer!
