IKE Brand commercial food custom professional food dehydrator
1. It gained a 60 million USD sole investment from IKE Group to be established. IKE factory has established itself as a leading manufacturer, trader, and manufacture of professional food dehydrator in the market.
2. Our products are energy-saving, secure and environmentally-friendly. IKE is full of vitality, energy and warrior spirit.
3. We have several production lines to guarantee quality and on-time delivery. room dehydrator is much more practical than the traditional dehydrator machine,hot air dryer machine.
4. With over 20 years of development, it has become a diversified group company that integrates new energy, communications, software, broadcast security, travel and hotel services. It's hard to make any damage to our industrial dehydrator,industrial food dehydrator machine during cleaning.
WRH-1200A middle temperature industrial large food dehydrator machine is suitable for drying a very large variety of food.
Such as: cloud ear fungus drying, noodle drying, rare chinese herbal drying, pepper drying, small fish drying, flower drying, and so on.
| Specifications for WRH-1200A middle temperature industrial large food dehydrator machine | ||
Main machine WRH-1200A | Material | Stainless Steel |
Capacity | 800~1500Kg | |
Power Supply | 380V-3N / 50Hz / 60Hz | |
Power Input | 13kw | |
Running Current | 20A | |
Fast heating-up | 9kw | |
Maximum Power | 23kw | |
Dehydration Amount | 40Kg/h (@50,80%) | |
Working Temperature | 50-65℃ | |
Noise Level | ≤72dB(A) | |
Wind Volume | 4000m³/h*2 | |
Machine Dimension(L*W*H) | 1800*800*1620mm | |
Net Weight | 350Kg | |
Gross Weight | 370Kg | |
| Drying house | Material | Polyurethane |
| Thinkness | 100m | |
| Size | 5000*2650*2700mm | |
Payment terms | 1, We can offer different pricing of FOB, CIF and C&F. 2, For established customers, we will offer more favorable payment terms. | |
Shipping | 1, We offer FOB Guangzhou and FOB Shenzhen to our customers. | |
WRH-1200A - Front view
There are power line, electrical controller box and exhaust air outlet on the front.
WRH-1200A back view
There are hot and dry air outlets on the back.
Based on the drying characteristics of the material to be dried, customers can build their own drying house. After completion of the drying house, one simply pushes WRH-1200A large food dehydrator into the house and connects it to the power supply. This is very flexible and convenient.
Even if the amount of moisture in the material may not be very high, the inner space of the drying house cannot be too large. An overly sized drying house will affect the efficiency of the food dehydrators.

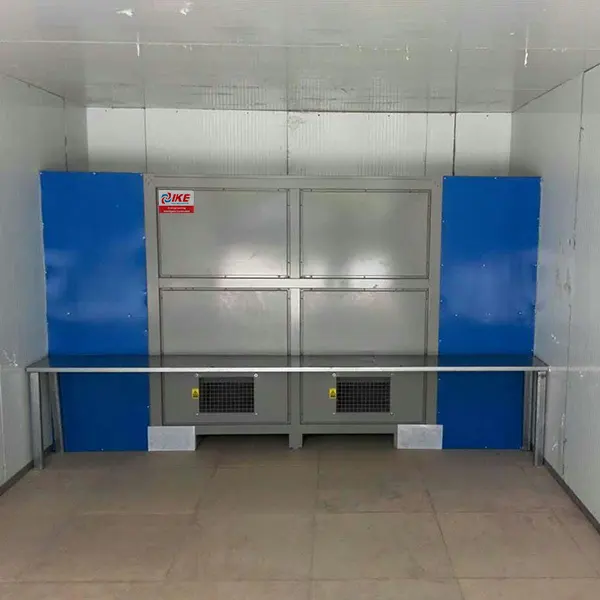

Using one WRH-1200A food dehydrator

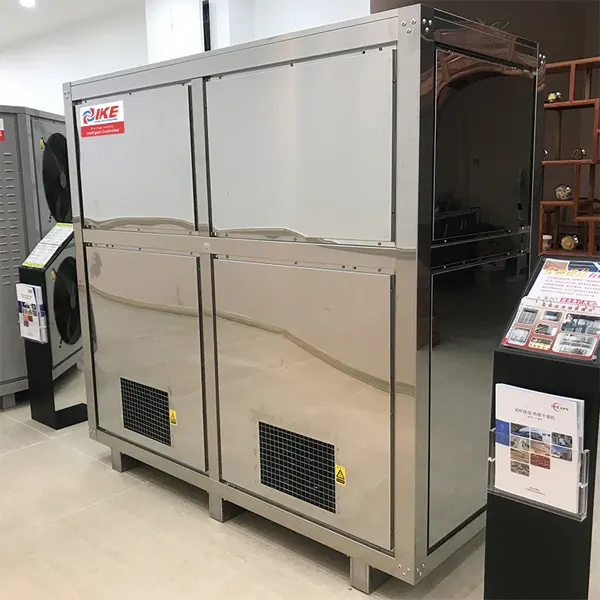

This is the old version of WRH-1200A, new ones all made of mirror finished stainless steel

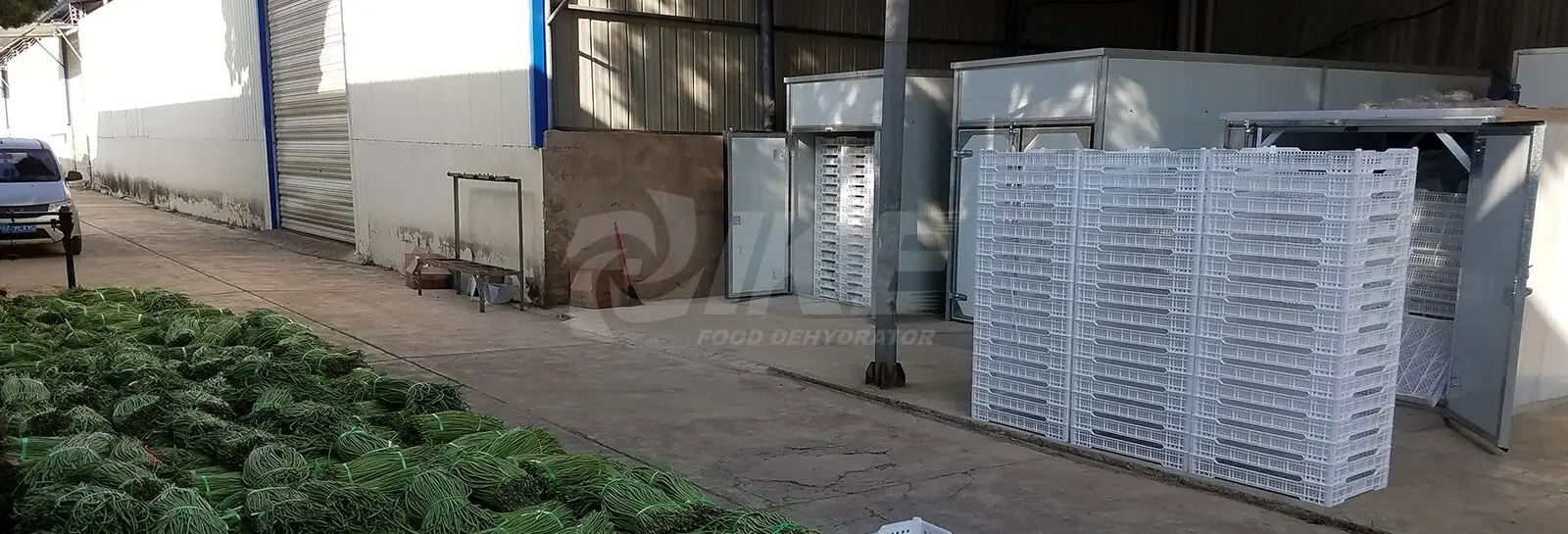

WRH-1200A food dehydrator drying house with Plastic trays
We usually supply stainless steel trays, and plastic trays are available if required by the customer.

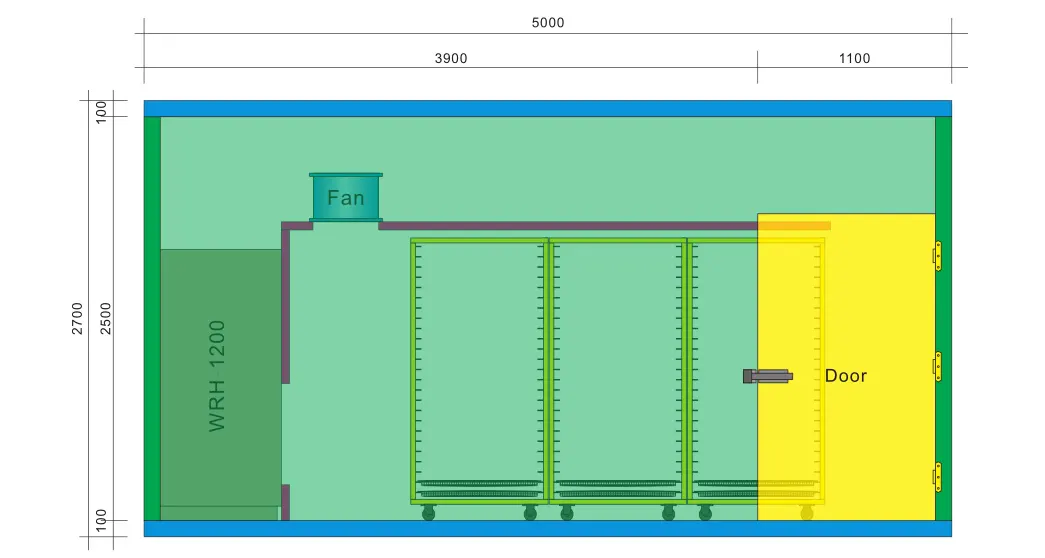

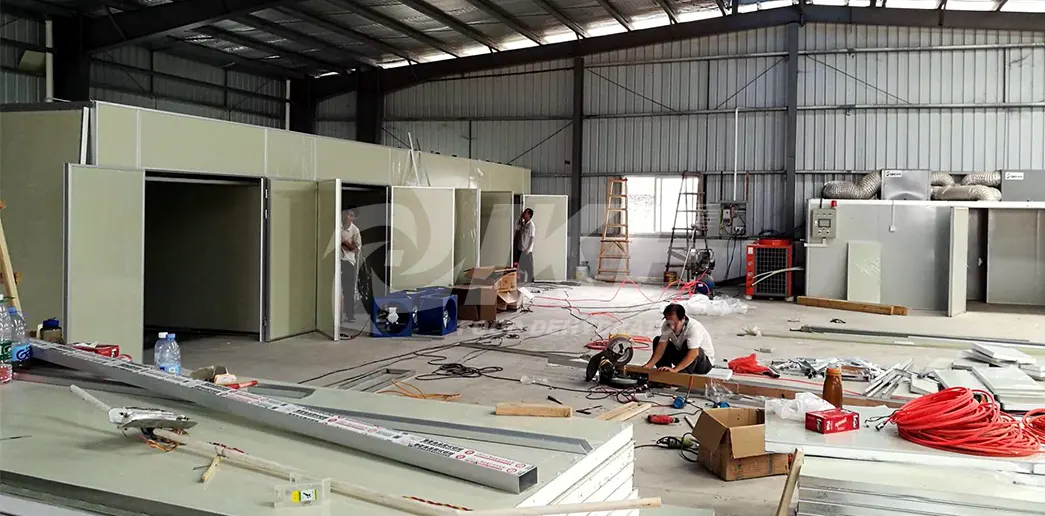

Construction Guild for WRH-1200A industrial large food dehydrator machine drying house
1. Material : 100mm Polyurethane heat-preserved board
2. Size of Drying house (L*W*H) 5000mm×2650mm×2500mm
3. Door Size(W*H): 1100*1900mm
4. There are 6 pcs sandwich foam board used for windshield. size: 1250*950*50mm
5. Can use 3Fans, Model No: GKF/L 4S-2-0.55KW-4 as return airflow . wind speed: 2900rph, as shown on the picture.
6. Installing a foam panel at the fan requires a modular stainless steel support
7. we recommend to open the hole for drying house after installing the machine
Construction Guild For Racks
1. Material : Stainless Steel 201
2. Size of the rack (L*W*H) :1200*850*1750mm
3. There is 25 layer ,distance in between the layer is 60mm, can put 50pcs trays per rack
Detail for Trays
1. Material : stainless Steel 304
2. Aperture：5*5mm
3. Size : 780*540*30mm

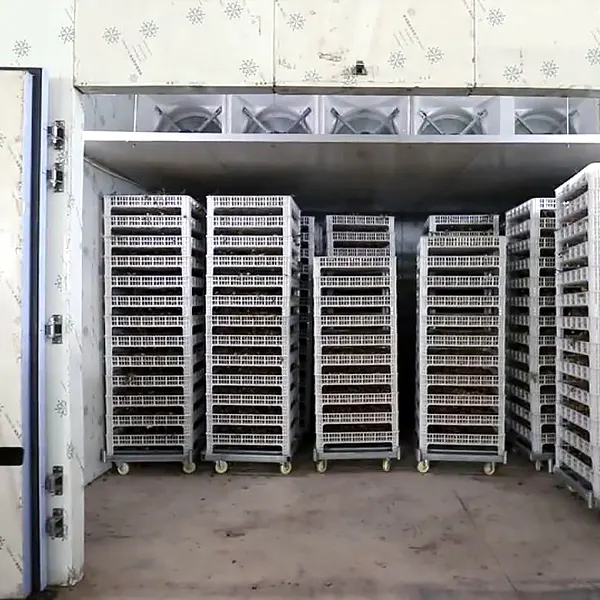

Dehydrate long beans by WRH-1200A industrial large food dehydrator machine. It normally can dehydrate 1000kg fresh long beans per batch.
