IKE commercial food drying machine middle for jerky
1. The appearance of IKE best commercial dehydrator is designed by our top-class R&D team who has spent most of their time in the lab.
2. The product features good heat dissipation. Its vents promote front-to-back airflow and keep it stay cool, which contributes to its smooth operation.
3. There were no errors during the operation. It has been tested for precision, and its tiny physical differences have run mathematical corrections in computer operating systems.
4. The product is widely recommended and treasured in the industry.
5. The product enjoys a good reputation with its rich strength and huge economic benefits.
WRH-1200A middle temperature industrial large food dehydrator machine is suitable for drying a very large variety of food. Such as: cloud ear fungus drying, noodle drying, rare chinese herbal drying, pepper drying, small fish drying, flower drying, and so on. Contact us for free product testing!
SPECIFICATIONS FOR WRH-1200A middle temperature industrial large food dehydrator machine | ||
Main machine WRH-1200A performance parameters | Materials | Stainless Steel |
Capacity | 800kg~1500kg per batch | |
Power Supply | 380V~3N/50Hz/60Hz | |
Power Input | 13.0KW | |
Running Current | 20.0A | |
Fast heating-up | 9.0KW | |
Maximum Power | 23.0Kw | |
Dehydration Amount | 40.0Kg/h ( @ 50℃，80%） | |
Working Temperature | 50~65℃ | |
Noise Level | ≤72dB(A) | |
Wind Volume | 4000m³/h | |
Machine Dimension(L*W*H) | 1800*800*1620mm | |
Net Weight | 350Kg | |
Gross Weight | 370Kg | |
Drying room | Material | Polyurethane |
Thinkness | 100mm | |
Size | 5000*2650*2700mm | |
MOQ | 1 unit | |
Lead time | 10~30 working days | |
Payment terms | 1, We can offer different pricing of FOB, CIF and C&F. | |
Shipping | 1, We offer FOB Guangzhou and FOB Shenzhen to our customers. | |
Warranty | Two-years warranty after WRH-1200A ship | |
The WRH-1200A is an embedded food dehydrator that is the main machine of the drying system. After constructing an insulated drying room, push the WRH-1200A into the drying room and simply connect the power cord to work normally. You can use your own drying house or buy our IKE drying house.
WRH-1200A - Front view
There are hot and dry air outlets on the back.
WRH-1200A back view
There are power line, electrical controller box and exhaust air outlet on the front.

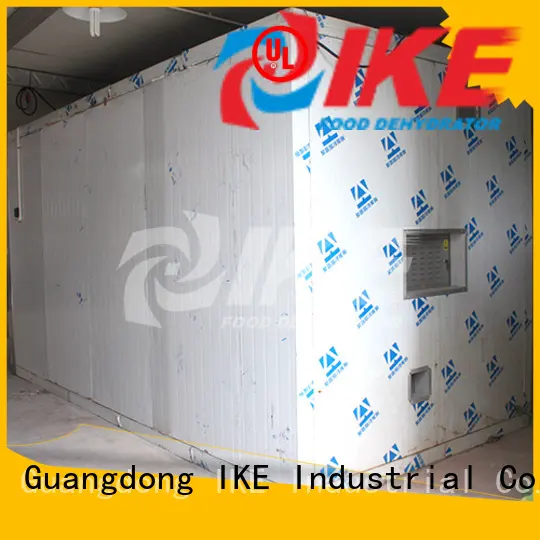

Based on the drying characteristics of the material to be dried, you can build your own drying house. After completion of the drying house, one simply pushes WRH-1200A industrial large food dehydrator machine into the house and connects it to the power supply. This is very flexible and convenient. Even if the amount of moisture in the material may not be very high, the inner space of the drying house cannot be too large. An overly sized drying house will affect the efficiency of the WRH-1200A food dehydrator machine.
Using one WRH-1200A food dehydrator
This is the old version of WRH-1200A, new ones all made of mirror finished stainless steel
WRH-1200A food dehydrator drying house with Plastic trays
We usually supply stainless steel trays, and plastic trays are available if required by the customer.
Construction Guild for WRH-1200A industrial large food dehydrator machine drying house
1. Material : 100mm Polyurethane heat-preserved board
2. Size of Drying house (L*W*H) 5000mm×2650mm×2500mm
3. Door Size(W*H): 1100*1900mm
4. There are 6 pcs sandwich foam board used for windshield. size: 1250*950*50mm
5. Can use 3Fans, Model No: GKF/L 4S-2-0.55KW-4 as return airflow . wind speed: 2900rph, as shown on the picture.
6. Installing a foam panel at the fan requires a modular stainless steel support
7. we recommend to open the hole for drying house after installing the machine
Construction Guild For Racks
1. Material : Stainless Steel 201
2. Size of the rack (L*W*H) :1200*850*1750mm
3. There is 25 layer ,distance in between the layer is 60mm, can put 50pcs trays per rack
Detail for Trays
1. Material : stainless Steel 304
2. Aperture：5*5mm
3. Size : 780*540*30mm
Dehydrate long beans by WRH-1200A industrial large food dehydrator machine. It normally can dehydrate 1000kg fresh long beans per batch.
Company Features
1. IKE is a food drying machine brand with modern production capacity.
2. The production technology of Guangdong IKE Industrial Co.,Ltd. is professional.
3. In our business, we prioritize product innovation. We will strengthen the R&D capability and closely collaborate with clients on product development projects that are more targeted. Our environmental sustainability strategy is about reducing our own environmental impacts against ambitious targets and supporting our clients with their sustainability challenges.
Since 1994
Commercial & Industrial Food Dehydrator Manufacturer
