WRH-500D commercial professional electric food dehydrator machine is suitable for drying a very large variety of food. Such as fishery drying, flower tea drying, cloud ear fungus drying, noodle drying, pasta drying, rare chinese herbal medicine drying and so on. Contact us for free drying testing!
SPECIFICATIONS FOR WRH-500D Commercial Professional Electric Food Dehydrator Machine | ||
Main machine WRH-500D performance parameters | Materials | Stainless Steel |
Capacity | 400kg~600kg per batch | |
Power Supply | 380~3Nv/50Hz/60Hz | |
Power Input | 5.0KW | |
Running Current | 15.0A | |
Fast heating-up | 4.5KW | |
Maximum Power | 11Kw | |
Dehydration Amount | 15.0Kg/h ( @ 50℃,80%) | |
Working Temperature | 20~50℃ | |
Noise Level | ≤70dB(A) | |
Wind Volume | 4000m³/h | |
Machine Dimension(L*W*H) | 1800*980*1320mm | |
Net Weight | 170Kg | |
Gross Weight | 190Kg | |
Drying room | Material | Polyurethane |
Thinkness | 100mm | |
Size | 5000*2100*2400mm | |
MOQ | 1 unit | |
Lead time | 10~30 working days | |
Payment terms | 1, We can offer different pricing of FOB, CIF and C&F. | |
Shipping | 1, We offer FOB Guangzhou and FOB Shenzhen to our customers. | |
Warranty | two-years warranty after WRH-500D food dehydrator machine ship |

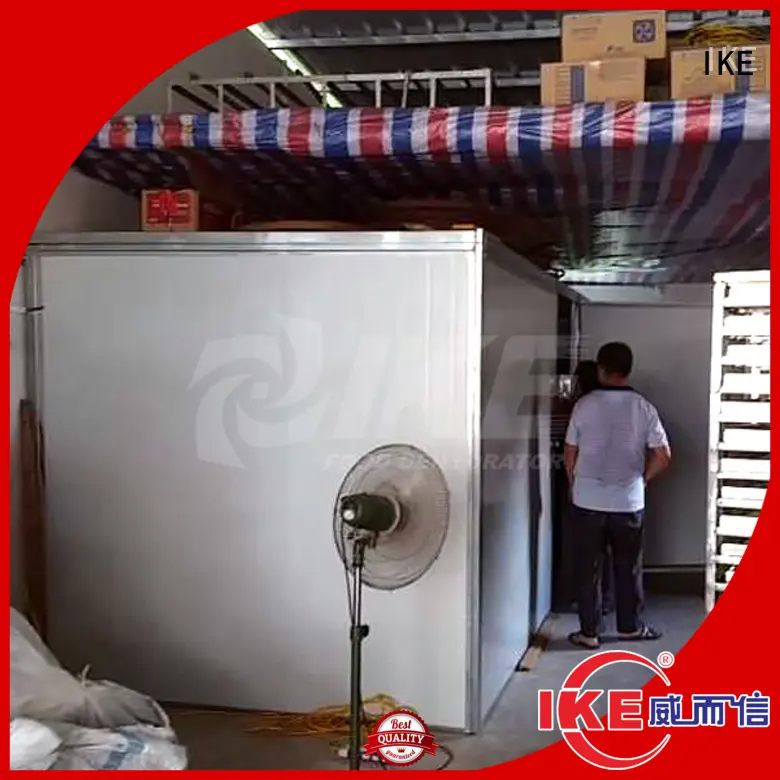

The WRH-500D commercial professional electric food dehydrator machine is an embedded dryer that is the main machine of the drying room. After constructing an insulated drying room, push the WRH-500D food dehydrator machine into the drying room and simply connect the power cord to work normally. You can use your own drying house or buy our IKE drying house with the WRH-500D food dehydrator machine.
The WRH-500D is different from other models in the WRH-500 series. It has only one air outlet in front.
The back of the WRH-500D has a residual heat exhaust fan, which is a unique fan of the low temperature dehydrator. The fan removes excess heat from the drying room, ensuring that the required low temperature is maintained in the drying room.
Based on the drying characteristics of the material to be dried, you can build your own drying house. After completion of the drying house, one simply pushes WRH-500D commercial professional electric food dehydrator machine into the house and connects it to the power supply. This is very flexible and convenient. Even if the amount of moisture in the material may not be very high, the inner space of the drying room cannot be too large (Suggest to use the following dimensions). An overly sized drying house will affect the efficiency of the WRH-500D food dehydrator machine.
The WRH-500D dehydrate flowers in low temperature. Drying with plastic trays does not affect the quality of the flowers.
Shown here is the fructus aurantii drying.
Shown here is the seafood drying. Low temperature drying can prevent it from deteriorating
1. Material: 100mm polyurethane heat-preserved board
2. Size of WRH-500D food dehydrator machine drying house (L*W*H): 5000mm×2100mm×2400mm
3. Door Size (W*H): 1100*1900mm you must put the main machine WRH-500D food dehydrator machine into the drying house first and then install the sideboard , or you can choose two doors so that the width of the WRH-500D food dehydrator machinedrying house can totally open.
4. There are 4 pcs sandwich foam board used for the windshield. size: 1250*950*50mm
5. Can use 2Fans as return airflow.
6. Installing a foam panel at the fan requires a modular stainless steel support.
7. We recommend opening the hole for drying house after installing the WRH-500D electric dehydrator machine.
1. Material: Stainless Steel 201
2. Size of the rack (L*W*H): 1200*850*1750mm
3. There is 25 layers, distance in between the layer is 60mm, can put 50pcs trays per rack.
1. Material: stainless Steel 304
2. Aperture: 5*5mm
3. Size: 780*540*30mm
Dehydrate tobacco by WRH-500D commercial professional electric food dehydrator machine. It normally can dehydrate 500kg fresh tobacco per batch.
The IKE WRH-500D food dehydrator machine drying fruits and vegetables in 20℃~50℃, articles does no damage, no moldy and maintain nutrition.
The IKE WRH-500D professional food dehydrator machine with high efficiency through the use of a heat pump system for removing air humidity.
Drying in a closed sealed room, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
Graphical touch control system, automatic intelligent control and demands no human duty after setting.
This series of industrial drying machine made of stainless steel, reduce fabric wear. Its outstanding advantages are:
1. An optimization design cooling and fan motor, large size heater, fast heat exchange and use high-energy, fast heating, drying time is short.
2. High-density drum vents to ensure adequate heat through the linen, the cloth can be fully dried in the shortest possible time.
3. Large diameter loading doors for easy loading and unloading clothes, door design uses overtake port design form, avoid pulling linen, safety interlocks ensure fitted clothes door open state machine starts braking.
4. Computer control can be precisely set the time and drying temperature dryer, computer controller with touch-button design, flexible and reliable operation.
5. Large push collection network, anti-dust mesh machine, drawer-type structure, pull it out clean, large area to ensure the smooth flow of through-hole rate, large-diameter fan duct, it is not easy to plug plush, all in order ensure quick drying.
Tumble Dryer specification
Product picture
Tumble Dryer Details
