Contact us for free drying test!

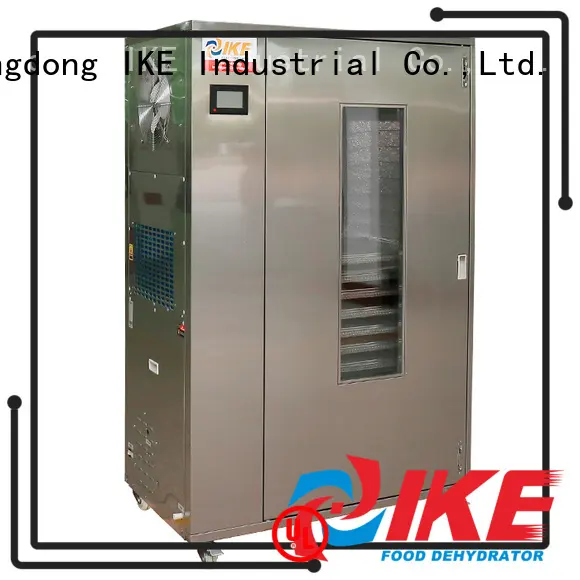

Specifications for WRH-100D Low Temperature Heat Pump Flower And Leave Dehydrator | ||
Main performance parameters | Power supply | 220V / 50Hz / 60Hz |
| Power Input | 1.0KW | |
Running Current | 5.0A | |
Fast heating-up | 1.0KW | |
Maximum Power | 2.2Kw | |
Dehydration Amount | 3.5Kg/h ( @ 50℃,80%) | |
Working Temperature | 20~50℃ | |
Capacity | 20~100kg / batch | |
Noise Level | ≤60dB(A) | |
Wind Volume | 1100m³/h | |
Machine Dimension(L*W*H) | 1180*680*1800mm | |
Tray Size(L*W*H) | 780*540*30mm | |
Tray Number | 15 pcs （normal） | |
Net Weight | 170Kg | |
Gross Weight | 190Kg | |
MOQ | 1 Set | |
Warranty | 2 years | |
Lead Time | 10~30 working days | |
Payment terms | 1, We can offer different pricing of FOB, CIF and C&F. | |
Shipping | 1, We offer FOB Guangzhou and FOB Shenzhen to our customers. | |
① sealed drying room, no affected by environmental temperature.
② keep active ingredients and maintain the product's quality and grade.
③ surface fast drying, no become moldy.
④ host inside drying room, 100% power recyclable and high efficiency.
⑤ strong air flow convection, no dead corner, even drying.
⑥ easy installation, no human duty
① the host on the outside, affected by environmental temperature.
② pollutants contaminate drying articles
③ water film cover the article, affecting drying result.
④ incurs the huge loss of heat.
⑤ uneven drying, demands flipping oven manually.
⑥ multiple connections require professional installation.
flowers drying
herb drying
Cabinet Screen Printing Drying Oven
Size of drying equipment :
Properties:
| Size | voltage(v) | watt(kw) | operation temperature(C) | Inside Dimensions(D*W*H mm) |
| XTDQ-101-1 | 220 | 2.2 | indoor-300C | 350*450*450 |
| XTDQ-101-2 | 220 | 3.2 | indoor-300C | 450*550*550 |
| XTDQ-101-3 | 220 | 4.6 | indoor-300C | 500*600*750 |
| XTDQ-101-4 | 220/380 | 9 | indoor-300C | 800*800*1000 |
| XTDQ-101-5 | 220/380 | 12 | indoor-300C | 800*1200*1200 |
| XTDQ-101-6 | 380 | 15 | indoor-300C | 1000*1200*1200 |
| XTDQ-101-7 | 380 | 18 | indoor-300C | 1000*1200*1500 |
| XTDQ-101-8 | 380 | 21 | indoor-300C | 1200*1200*1500 |
Brief Introduction
Inner Hull
Material: high quality SUS304 stainless steel
advantage: corrosion resistance, high temperature resistance, the advantage of high cleanliness
Body Shell
Material: high quality cold rolled stainless steel sheet , angle bar , channel bar and so on
Between shell and studio pack high-temperature insulation aluminum silicate cotton, the surface of the lacquer that bake
Enclosure the overall design is reasonable, elegant shape.
This product USES xmt7000 intelligent numbered automated process temperature control, the microcomputer
constant temperature time, large area, uniformity of tubular heating
From the indide out: inner chamber(stainless steel)→ heating element(S.S304 finned tube)→insulating layer(aluminum silicate wool)→outermost shell(carbon steel/stainless steel)
Insulating layer thickness: 100C=50mm
200C=100mm
300C=150mm
1.Inner size: length*width*height
2.Inner material: carbon steel/stainless steel
3.Temperature range: normal temprature~300/500C
4.Accuracy: ±1°C/2°C heated air circulation drying oven
5.Baked medinum: depends on the capacity once Notice: 1.powdered,use tray 2.graininess ,use halftone
6.Voltage: Over 500*500*500mm use 380V
Classify of drying machine :
With heated air circulation drying oven: With electrical machine,Temperature uniformity,500C
Without heated air circulation drying oven:With exhaust funnel,Temperature nonuniformity,Below 100c
Advantage of drying machine :
1. Polished stainless-steel chamber
2. Latest PID controller
3. Uniform distribution of air temperature
4. Forced-air convection
5. Double Layer glass door, larger viewing window.
6. Provided for desiccation, torrefaction, wax-melting and sterilization in mining enterprises, laboratories and scientific research
