IKE industrial food dehydrator low-noise for leave
1. IKE drying oven is the outcome of various disciplinary knowledge. It is developed under the guideline of mechanical engineering, applied mechanics, power machinery, CNC technology, and so on.
2. The quality oversight of qualification activities in manufacturing area is emphasized.
3. With its large growth prospect, this product has helped IKE won many long-term cooperation customers.
4. This product serves a number of prestigious brands around the world.

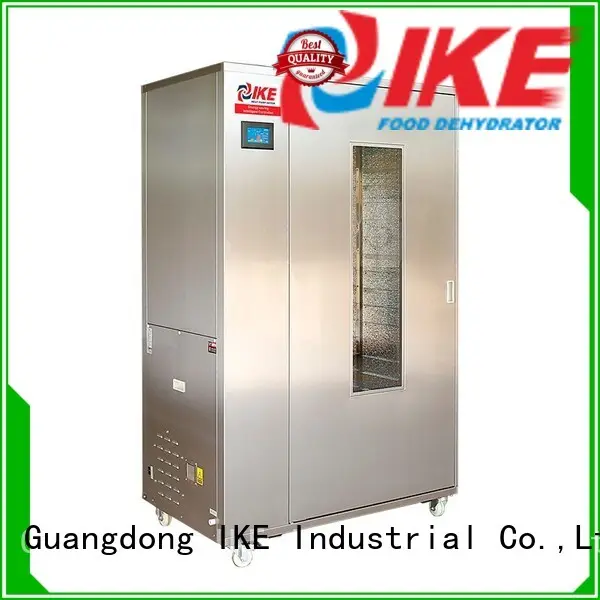

IKE food dehydrator WRH-100B has a compact structure, great energy-saving, wide application, high drying quality, easy operation, simple installation and removable. it is the best drying equipment for small firms, drying experiment and scientific research. optional "cloud" management function to achieve remote monitoring by computers and mobiles.
The users only connect the power to use, is the easiest operation heat pump dryer.
SPECIFICATIONS FOR WRH-100B | ||
Main performance parameters | Materials | Stainless Steel |
| Capacity | 20-100kg/batch | |
Power Supply | 220v/50Hz/60Hz | |
Power Input | 1.0KW | |
Running Current | 5.0A | |
Fast heating-up | 1.0KW | |
Maximum Power | 2.2Kw | |
Dehydration Amount | 3.5Kg/h ( @ 50℃，80%） | |
Working Temperature | 50~65℃ | |
Working Ambient Temperature | 5~40℃ | |
Noise Level | ≤60dB(A) | |
Wind Volume | 1100m³/h | |
Machine Dimension(L*W*H) | 1180*680*1800mm | |
Tray Size(L*W*H) | 780*540*30mm | |
Net Weight | 160Kg | |
Gross Weight | 180Kg | |
Quality Control | IQC (Incoming quality check)；IPQC (In-process quality check)；OQC (Out-going quality check)；FQC (Final quality check) | |
Payment terms | 1, We can offer different pricing of FOB, CIF and C&F. | |
Shipping | 1, We offer FOB Guangzhou and FOB Shenzhen to our customers. | |
Drying essence is take moisture away, but takes away the moisture temperature is not the most critical factor. The key for drying is depending on relative humidity within certain space, IKE Company took advantage of the dry essence, originality developed a "Closed Cycle" dryer, changed the traditional heat pump dryer "bake" to "dehumidifier”. Its several advantages were unmatched by the traditional heat pump dryer.
Applicable locations and situations for WRH-100B: dried fruit production, sausage production, rare chinese herbal medicine, initial processing for produce, etc.
Fruits
apple drying, banana drying, lemon drying, longan drying, kiwi drying, grape drying, etc.Vegetables
tomato drying, sweet potato drying, potato drying, chilli drying, etc.Flowering teas
yellow chrysanthemum drying, rose flower drying, pomelo flower drying, etc.
Meat
pork drying, beef drying, dog treat drying, chicken drying, sausage drying, etc.Seafood
fish drying, squid drying, shrimp drying, sea cucumber drying, etc.Herbal medicine
orange peel drying, moringa leaves drying, maca drying, lonicera japoniac drying, etc.
fruits and vegetables drying
meat drying
Strong wind dehumidification drying in 25℃~65℃, articles does no damage, no moldy and maintain nutrition.
Drying in a closed sealed room, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
All in one design, operation directly after power switched on. Graphical touch control system, automatic intelligent control and demands no human duty after setting.
Company Features
1. Guangdong IKE Industrial Co.,Ltd. takes pride in manufacturing high quality industrial food dehydrator . We are receiving many compliments both in China and international market.
2. Guangdong IKE Industrial Co.,Ltd. produces with a scientific management model.
3. The practice of screen drying cabinet will be the focus of Guangdong IKE Industrial Co.,Ltd.’s work in the future. Contact! The tenet of cabinet dryer for food helps to set up the good image of IKE. Contact!
It Front door with observation hole,temperature digital control Whole body
1.Storage,heating,testing and drying carried out in the environment where is no oxygen,so not oxidation.
2.Perfect design,the body use numerical control machine to process,box door open,easy to operate
3.The circuit system uses the gate type to open,convenient maintenance and repair
4.Liner made of SUS304 stainless steel plate,Shell A3 spray treatment,it is bright and clean.
5.Box door closing tightness can be adjustable,silicon rubber sealing ring make sure the temperate of oven
Parameters
Temperature control range:50-300 ℃
Heater two groups
Temperature control accuracy:±1℃
Working voltage:220v,380v
Inward dimension:
350*350*450(101-!)(45) 450*550*550(101-2)(55) 550*600*750(101-3)(75) 800*800*1000(101-4)(800-1000mm)
Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 7 days
The description of heating pump dehydrated drying machine oven:
The heat pump dryer is finned evaporator, compressor, fin condenser (machine) and expansion valve of four parts, by making the working medium continuously complete evaporation (absorb heat from the outdoor environment) to compression, condensation (gives off heat drying room) indoors to throttle, thermodynamic cycle process of evaporation, again to the external environment at low temperature in the heat transfer to the drying room, under the action of refrigerant in the compressor circulating in the system. It made within the compressor gas booster heating process (temperature up to 100℃), it enters the release of the high-temperature heat drying room air, while being cooled and translated into flow liquid when it runs to the outside machine, rapid heat evaporating liquid into a gas again, at the same time, the temperature can fall to - 20 ℃~ 30 ℃, then the air surrounding the heat absorber will continue to transfer heat to the refrigerant.
The application of heat pump dryer:
It's widely used for agriculture industry,and the heat pump fruit dryer can drying various of furit.For example apple chips,banana chips,mango chips,peach,etc
Of course it can drying the other food,grain ,vegetable.
Advantage :
1.energy-saving:thermal efficiency is as high as 460%, operation cost is the 1/3 of fuel gas,fuel oil,1/4 of the electricity,40% lower than the solar energy,save 30% than coal.2.environmental protection: electricity directly, no waste heat,water and air emissions.3.safety:separation of water and electricity,no leakage danger,no explosion danger.4.easy installation:integrated drying,dehumidification,installation,demolition is convenient and can be installed inside or outside.5.drying quality control:intelligent control,color,lustre and shape remains unchanged.High degree of automation, intelligent,24 hours of continuous drying operation.Not affected by climate: whether it is windy or rainy, can be operation.
