IKE on-sale metal conveyor belt hot-sale for beef
-
v s
1. Material is also a key factor in determining the final machine performance of IKE conveyor manufacturers. Therefore, all of the materials and components have to be tested for mechanical properties.
2. metal conveyor belt serves many famous brand.
3. The product is put into the market after rigorous inspection.
4. The product has achieved a high level of client satisfaction because it is highly cost-effective and is thought to be used more widely in the market.
5. The product has accumulated numerous praises from customers in the industry.

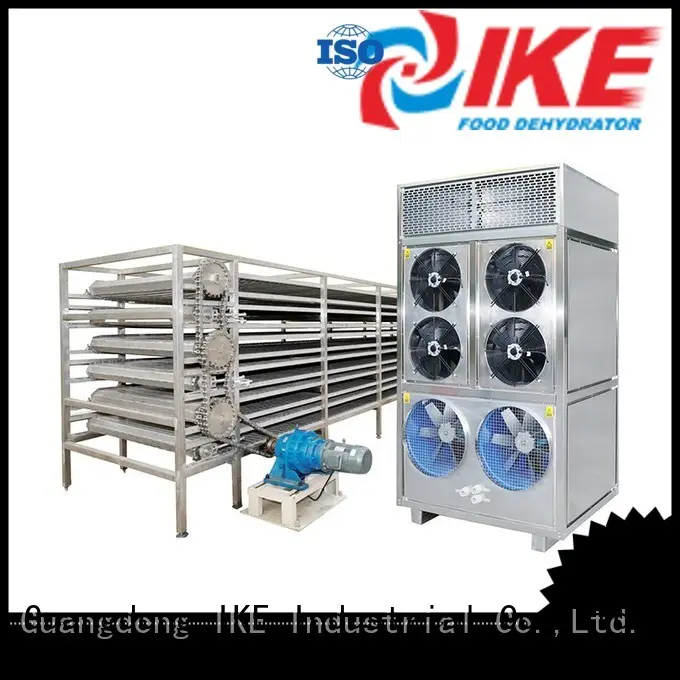

IKE customized conveyor mesh belt large food dehydrator is automatic continuous drying machine for large-scale production. The continuous drying machine can be equipped according to the user’s requirement and the production demands. It is suitable for drying a very large variety of food. Such as noodles, dehydrated vegetables for instant noodles, fruits, seafood, and so on. Contact us for free drying testing!
Model | Unit | WRH-1200AL | WRH-1200GL |
Power supply | V/Hz | 380V-3N / 50Hz | 380V-3N / 50Hz |
Power input | Kw | 13.0 | 13.0 |
Running current | A | 20 | 20 |
Fast heating-up | Kw | 9.0 | 9.0 |
Maximum Power | Kw | 24 | 24 |
Dehumidification amount | Kg/h | 40 | 36 |
Best Drying Temperature | ℃ | 50~65 | 50~80 |
Max. hot air Temperature | ℃ | 65 | 80 |
Working Ambient temperature | ℃ | 5~40 | 5~40 |
Noise Level | dB(A) | ≤ 72dB | ≤ 72dB |
Wind volume | m³/h | 4000m*2+2200*4 | 4000m*2+2200*4 |
Machine Dimension(L*W*H) | Mm | 1250*800*1920 | 1250*800*1920 |
Gross Weight | kg | 390 | 390 |
Different Models can be customized based on requirment
Model | Unit | Flow Lines |
Power Supply | V/Hz | 380V~3N/50Hz |
Power Input | Kw | 0.1-8.0kw variable frequencies to adjust |
Maximum Current | A | 10 |
Maximum Power Consumption | Kw | 8.0 |
Layer Number |
| 1-10 layers to choose |
Operation Speed | m/min | 0m/min-2m/min to adjust |
Chain Width | m | 1.0-6.0 to choose |
Chain Material |
| 201, 304, 316 stainless steel to choose |
Chain Length per layer | m | 1.5m-12m to choose |
The automatic belt food dehydrator uses air to transfer heat and remove moisture as the food moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no drops during drying. The balanced drying can be ensured. The dried food will be automatically discharged to a collector.
The running speed of the conveyer belt can be adjusted according to the food character.
1. Middle and low temperature dehumidification drying
The IKE customized conveyor mesh belt large food dehydrator drying fruits and vegetables in 50℃~80℃, articles does no damage, no moldy and maintain nutrition.
2. Use heat pump technology
The IKE customized conveyor mesh belt large food dehydrator with high efficiency through the use of a heat pump system for removing air humidity.
3. Working in wholly sealed drying system, hygiene and energy conservation
Drying in a closed sealed system, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
4. Running Stable, operating easily
Graphical touch control system, automatic intelligent control and demands no human duty after setting.
Company Features
1. Manufacturing quality metal conveyor belt has helped IKE become a famous company.
2. The company is recognized by the Chinese government and the public for its quality, reliability, and cost-efficiency in an ever-increasing number of markets worldwide. The award of the advanced enterprise of quality management system is powerful evidence to prove this.
3. Guangdong IKE Industrial Co.,Ltd. pays high attention to quality and service for better development. Get an offer! Guangdong IKE Industrial Co.,Ltd. will never lose its ambitions and still worked hard on supplying high quality drying equipment . Get an offer! IKE is a specialized stainless steel conveyor supplier which is very ambitious. Get an offer! Excellence comes from our professionalism in the industry of stainless steel conveyor belt. Get an offer!
