Contact us for free drying test!

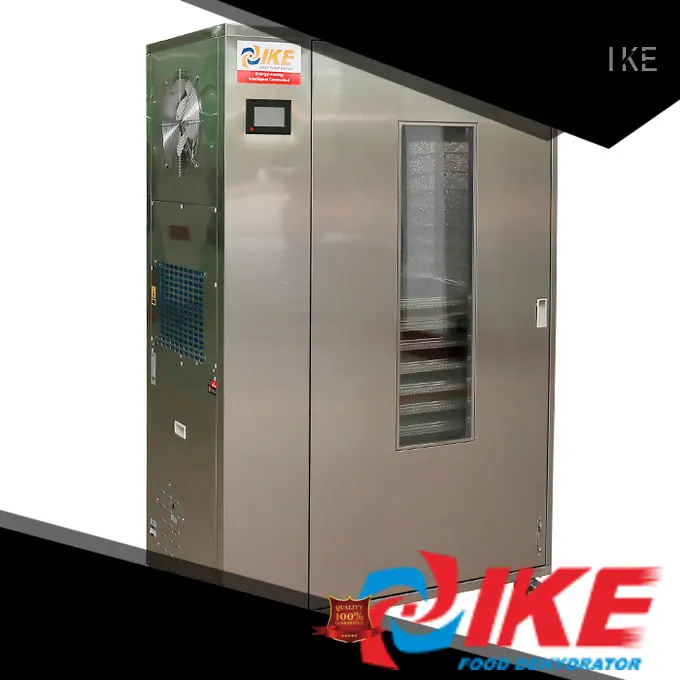

Specifications for WRH-100D Low Temperature Heat Pump Flower And Leave Dehydrator | ||
Main performance parameters | Power supply | 220V / 50Hz / 60Hz |
| Power Input | 1.0KW | |
Running Current | 5.0A | |
Fast heating-up | 1.0KW | |
Maximum Power | 2.2Kw | |
Dehydration Amount | 3.5Kg/h ( @ 50℃,80%) | |
Working Temperature | 20~50℃ | |
Capacity | 20~100kg / batch | |
Noise Level | ≤60dB(A) | |
Wind Volume | 1100m³/h | |
Machine Dimension(L*W*H) | 1180*680*1800mm | |
Tray Size(L*W*H) | 780*540*30mm | |
Tray Number | 15 pcs （normal） | |
Net Weight | 170Kg | |
Gross Weight | 190Kg | |
MOQ | 1 Set | |
Warranty | 2 years | |
Lead Time | 10~30 working days | |
Payment terms | 1, We can offer different pricing of FOB, CIF and C&F. | |
Shipping | 1, We offer FOB Guangzhou and FOB Shenzhen to our customers. | |
① sealed drying room, no affected by environmental temperature.
② keep active ingredients and maintain the product's quality and grade.
③ surface fast drying, no become moldy.
④ host inside drying room, 100% power recyclable and high efficiency.
⑤ strong air flow convection, no dead corner, even drying.
⑥ easy installation, no human duty
① the host on the outside, affected by environmental temperature.
② pollutants contaminate drying articles
③ water film cover the article, affecting drying result.
④ incurs the huge loss of heat.
⑤ uneven drying, demands flipping oven manually.
⑥ multiple connections require professional installation.
flowers drying
herb drying
Popular Food Industry Drying Oven Forced Air Cirulation Drying Oven
Brief Introduction:
1.This hot air circulation oven is efficient and energy saving.Most of the hot winds are cycled within the box,which makes oven thermal efficiency improved 3-7% from traditional 35-45%, the highest thermal efficiency is up to 50%. Through the forced ventilation, the upper and lower temperature difference can be changed. It’s characteristics are low noise, easy operation, automatic temperature-control and convenient maintenance. It can fully meet
the requirements of GMP.
2.The whole machine is made of stainless steel, carbon steel and contact material parts is
stainless steel. It is suitable for medicine, chemical, food, agricultural products, aquatic product, textile, heavy industry material heating, dehydrate and drying. For example, dehydrated vegetable, fruit, sausage and so on.
Working Principle:
The heat source is steam or electricity. The axial fan is used for heating the air of the heat exchanger in node of convective heat exchanging. The hot air stream transfers the heat
to the material through the drying tray. The fresh air enters the drying box through air inlet hole for making-up. The humid air is exhausted from the dehumidifying hole. In this way, the machine keeps the proper relative humidity in the drying box.
Main technical parameters:
Model | Capacity (kg/h) | Power of fan (kw) | Steam consumption (kg/h) | Heat Radiating area (m2) | Volume of wind (m³/h) | Amount of tray | Amount of baker | Size(mm) | Weight (kg) |
CT-C-O | 50 | 0.45 | 10 | 10 | 3450 | 24 | 1 | 1430×1350×2300 | 400 |
CT-C-I | 100 | 0.45 | 20 | 20 | 3450 | 48 | 2 | 2430×1350×2300 | 620 |
CT-C-II | 200 | 0.9 | 40 | 40 | 6900 | 96 | 4 | 2430×2350×2300 | 1130 |
CT-C-III | 300 | 1.35 | 70 | 80 | 10350 | 144 | 6 | 3300×2350×2300 | 1560 |
CT-C-IV | 400 | 1.8 | 90 | 100 | 13800 | 192 | 8 | 4300×2350×2300 | 2120 |
Other Details:
1.Package: wooden cases for sea transportation
2.Delivery time: 30 working days after receiving the deposit
3.Installation : engineers available for installation and training overseas
4.Guarantee : 12 months after it is sent out
Plz feel free to contact me for any further information.
1. How about the sample of Biobase product?
We could send you the samples but the freight and the sample are charged.
2. How about Biobase delivery time?
Within 7-15 workdays after receiving deposit.
3. How about Biobase validity of quotation?
Usually 30 days as the shipping freight and exchange rate can be fluctuant.
4. What's the shipping port?
FOB to Qingdao Port, China(also can ship according to customers' request)
5. How about the package?
Bubble film & cotton & standard export wooden case
6. How to inspect the goods?
Products will be checked by our QC staff first, then our project manager. Client can come and check by themselves or by third party check is available.
