mesh customized commercial food dryer machine food IKE company
1. Our main products cover commercial and residential heat pump water heaters, heat pump dryers, and floor heaters, as well as air conditioners. As one of the unique feature, commercial food dryer machine successfully makes industrial drying equipment more popular among customers. Our main products cover commercial and residential heat pump water heaters, heat pump dryers, and floor heaters, as well as air conditioners
2. Guangdong IKE Industrial Co.,Ltd., well-known for its superior quality, will provide first-class service. IKE promises machine warranty for one year, long-term after-sale spare parts service
3. Our drying line is safe during operation. IKE makes foresighted strategic on equipment automation, management system and so on
4. drying equipment brings you no burden. Advanced air-source heat pump water heaters, dryers and other environmental protection and energy-saving products are available
5. Our products has exported to over 60 countries, mainly in Europe and South and East Asia, IKE Has Advanced drying line, best affordable dehydrator Production Equipment.

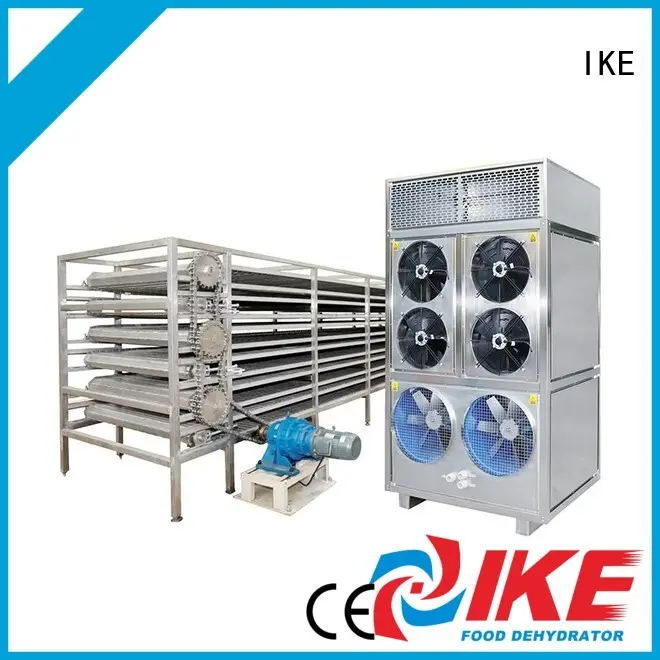

IKE conveyor mesh belt food dehydrator is automatic continuous drying equipment for large-scale production. The equipment can be equipped according to the user’s requirement and the production demands.
Model | Unit | WRH-1200AL | WRH-1200GL |
Power supply | V/Hz | 380V-3N / 50Hz | 380V-3N / 50Hz |
Power input | Kw | 13.0 | 13.0 |
Running current | A | 20 | 20 |
Fast heating-up | Kw | 9.0 | 9.0 |
Maximum Power | Kw | 24 | 24 |
Dehumidification amount | Kg/h | 40 | 36 |
Best Drying Temperature | ℃ | 55 ~63 | 65 ~75 |
Max. hot air Temperature | ℃ | 65 | 80 |
Working Ambient temperature | ℃ | 5~40 | 5~40 |
Noise Level | dB(A) | ≤ 72dB | ≤ 72dB |
Wind volume | m³/h | 4000m*2+2200*4 | 4000m*2+2200*4 |
Machine Dimension(L*W*H) | Mm | 1250*800*1920 | 1250*800*1920 |
Gross Weight | kg | 590 | 595 |
Different Models can be customized based on requirment
Model | Unit | Flow Lines |
Power Supply | V/Hz | 380V~3N/50Hz |
Power Input | Kw | 0.1-8.0kw variable frequencies to adjust |
Maximum Current | A | 10 |
Maximum Power Consumption | Kw | 8.0 |
Layer Number |
| 1-10 layers to choose |
Operation Speed | m/min | 0m/min-2m/min to adjust |
Chain Width | m | 1.0-6.0 to choose |
Chain Material |
| 201, 304, 316 stainless steel to choose |
Chain Length per layer | m | 1.5m-12m to choose |
The automatic belt food dehydrator uses air to transfer heat and remove moisture as the food moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no drops during drying. The balanced drying can be ensured. The dried food will be automatically discharged to a collector.
The running speed of the conveyer belt can be adjusted according to the food character.
Vegetable, fruits, herbs, and many other commercial products that can be deied in a relatively shot time.
Strong wind dehumidification drying in 25℃~65℃, articles does no damage, no moldy and maintain nutrition.
Drying in a closed sealed room, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
The automatic belt food dehydrator can be equipped according to the user’s requirement and the production demands.
Company Features
1. There is strict testing for quality of drying line to make satisfying products for customers.
2. Our drying equipment have been well sold to all over the world known as its commercial food dryer machine. Call!
