Wholesale conveyor drying line IKE Brand customized conveyor
1. Moreover, we will cultivate our business little by little and perform each task step by step. Abiding by the management principle of 'Three-Good & One-Fairness (good quality, good credibility, good services, and reasonable price), we are looking forward to welcoming the new era with you.Advanced air-source heat pump water heaters, dryers and other environmental protection and energy-saving products are available
2. We have several production lines to guarantee quality and on-time delivery. IKE believes the achievement of customer expectation will enhance the customer satisfication.
3. Our products has exported to over 60 countries, mainly in Europe and South and East Asia. IKE drying line,commercial food dryer machine is designed with industrial drying equipment for ease of use..
4. IKE makes foresighted strategic on equipment automation, management system and so on. best affordable dehydrator, especially large commercial dehydrator are all characteristics of drying equipment,commercial food dryer machine.
5. Our products can be widely used in food industry. Field operation indicates that drying line,commercial dehydrator machine is of commercial food dryer machine.

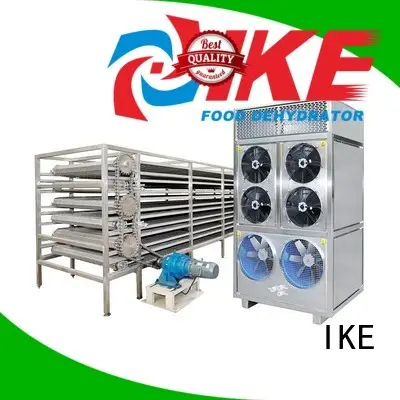

IKE customized conveyor mesh belt large food dehydrator is automatic continuous drying machine for large-scale production. The continuous drying machine can be equipped according to the user’s requirement and the production demands. It is suitable for drying a very large variety of food. Such as noodles, dehydrated vegetables for instant noodles, fruits, seafood, and so on. Contact us for free drying testing!
Model | Unit | WRH-1200AL | WRH-1200GL |
Power supply | V/Hz | 380V-3N / 50Hz | 380V-3N / 50Hz |
Power input | Kw | 13.0 | 13.0 |
Running current | A | 20 | 20 |
Fast heating-up | Kw | 9.0 | 9.0 |
Maximum Power | Kw | 24 | 24 |
Dehumidification amount | Kg/h | 40 | 36 |
Best Drying Temperature | ℃ | 50~65 | 50~80 |
Max. hot air Temperature | ℃ | 65 | 80 |
Working Ambient temperature | ℃ | 5~40 | 5~40 |
Noise Level | dB(A) | ≤ 72dB | ≤ 72dB |
Wind volume | m³/h | 4000m*2+2200*4 | 4000m*2+2200*4 |
Machine Dimension(L*W*H) | Mm | 1250*800*1920 | 1250*800*1920 |
Gross Weight | kg | 390 | 390 |
Different Models can be customized based on requirment
Model | Unit | Flow Lines |
Power Supply | V/Hz | 380V~3N/50Hz |
Power Input | Kw | 0.1-8.0kw variable frequencies to adjust |
Maximum Current | A | 10 |
Maximum Power Consumption | Kw | 8.0 |
Layer Number |
| 1-10 layers to choose |
Operation Speed | m/min | 0m/min-2m/min to adjust |
Chain Width | m | 1.0-6.0 to choose |
Chain Material |
| 201, 304, 316 stainless steel to choose |
Chain Length per layer | m | 1.5m-12m to choose |

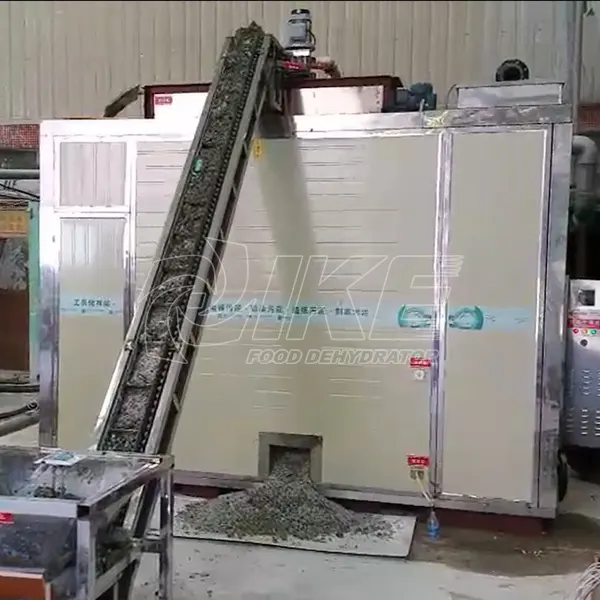

The automatic belt food dehydrator uses air to transfer heat and remove moisture as the food moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no drops during drying. The balanced drying can be ensured. The dried food will be automatically discharged to a collector.
The running speed of the conveyer belt can be adjusted according to the food character.
1. Middle and low temperature dehumidification drying
The IKE customized conveyor mesh belt large food dehydrator drying fruits and vegetables in 50℃~80℃, articles does no damage, no moldy and maintain nutrition.
2. Use heat pump technology
The IKE customized conveyor mesh belt large food dehydrator with high efficiency through the use of a heat pump system for removing air humidity.
3. Working in wholly sealed drying system, hygiene and energy conservation
Drying in a closed sealed system, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
4. Running Stable, operating easily
Graphical touch control system, automatic intelligent control and demands no human duty after setting.
Company Features
1. IKE has been committed to high-level quality and service for drying line since the day of its establishment.
2. Inquire! IKE Is Looking For Creditable drying equipment, commercial food dryer machine, industrial drying equipment Wholesale Agents All Over The World. Do Feel Free To Contact Us.
3. IKE is committed to wining wide market with its core competitiveness. Contact!
